Moxa EDS-408A-MM-ST Entry-level managed Ethernet switch

Description

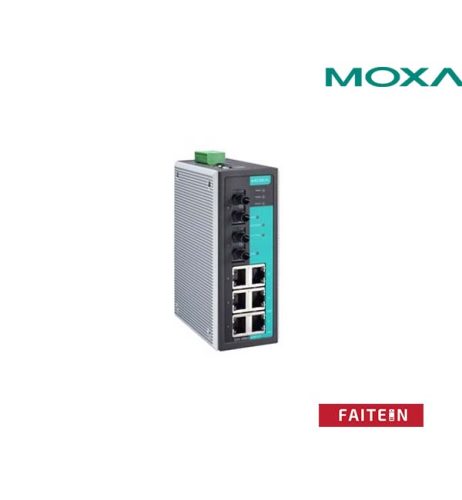

Moxa EDS-408A-MM-ST Entry-level managed Ethernet switch

The EDS-405A/408A are entry-level 5 and 8-port managed Ethernet switches designed especially for industrial applications. The EDS-408A-MM-ST switches support a variety of useful management functions, such as Turbo Ring, ring coupling, port-based VLAN, QoS, RMON, bandwidth management, port mirroring, and warning by email or relay. The ready-to-use Turbo Ring can be set up easily using the web-based management interface, or with the DIP switches located on the top panel of the EDS-405A/408A switches.

---

---

Features

IPv6 Ready logo awarded (IPv6 Logo Committee certified)
DHCP Option 82 for IP address assignment with different policies (available soon)
Modbus/TCP industrial Ethernet protocol supported (available soon)
IEC 61850 GOOSE messaging compliance
Plug-n-Play Turbo Ring (recovery time < 20 MS at full load) and RSTP/STP (IEEE 802.1w/D) capability
Port-based VLAN to ease network planning
QoS (IEEE 802.1p and TOS/DiffServ) to increase determinism
RMON for efficient network monitoring and proactive capability
SNMPv1/v2c/v3 for different levels of network management
Bandwidth management prevents unpredictable network status
Port mirroring for online debugging
Works with MXview industrial network management software

Ethernet Interface / EDS-408A-MM-ST

• 10/100BaseT(X) Ports (RJ45 connector)

1. 6
2. Auto negotiation speed
3. Full/Half duplex mode
4. Auto MDI/MDI-X connection

100BaseFX Ports (multi-mode ST connector) : 2

• Standards

1. IEEE 802.3 for 10BaseT
2. IEEE 802.3u for 100BaseT(X) and 100BaseFX
3. IEEE 802.3x for flow control
4. IEEE 802.1D-2004 for Spanning Tree Protocol
5. IEEE 802.1p for Class of Service
6. IEEE 802.1Q for VLAN Tagging
7. IEEE 802.1w for Rapid Spanning Tree Protocol

Ethernet Software Features

Filter : 802.1Q VLAN, GMRP, GVRP, IGMP v1/v2, Port-based VLAN

Industrial Protocols : Ethernet/IP, Modbus TCP

Management : Back Pressure Flow Control, BOOTP, DHCP Option 66/67/82, DHCP Server/Client, Flow control, IPv4/IPv6, LLDP, Port Mirror, RARP, RMON, SMTP, SNMP Inform, SNMPv1/v2c/v3,  Syslog, Telnet, TFTP

MIB : Bridge MIB, Ethernet-like MIB, MIB-II, P-BRIDGE MIB, RMON MIB Groups 1, 2, 3, 9, RSTP MIB

Redundancy Protocols : RSTP, STP, Turbo Chain, Turbo Ring v1/v2

Time Management : NTP Server/Client, SNTP

Switch Properties

IGMP Groups : 256
MAC Table Size : 8 K
Max. No. of VLANs : 64
Packet Buffer Size : 1 M-bits
Priority Queues : 4
VLAN ID Range : VID 1 to 4094.

Serial Interface/ EDS-408A-MM-ST

Console Port : RS-232 (T x D, R x D, GND), 10-pin RJ45 (115200, n, 8, 1)

DIP Switch Configuration

Ethernet Interface : Turbo Ring, Master, Coupler, Reserve

Input/Output Interface

Alarm Contact Channels : Relay output with current carrying capacity of 1 A @ 24 VDC

Power Parameters

Connection : 1 removable 6-contact terminal block(s)
Input Voltage : 12/24/48 VDC, Redundant dual inputs
Operating Voltage : 9.6 to 60 VDC

Input Current

• 0.61 @ 12 VDC
• 0.3 @ 24 VDC
• 0.16 @ 48 VDC

Overload Current Protection : Supported
Reverse Polarity Protection : Supported

Physical Characteristics/EDS-408A-MM-ST

Housing : Metal
IP Rating : IP30
Dimensions : 53.6 x 135 x 105 mm (2.11 x 5.31 x 4.13 in)
Weight : 650 g (1.44 lb.)
Installation : DIN-rail mounting, Wall mounting (with optional kit)

Environmental Limits

Operating Temperature : -10 to 60°C (14 to 140°F)
Storage Temperature (package included) : -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity : 5 to 95% (non-condensing)

Warranty

Warranty Period : 5 years.

Additional information

Brand	MOXA
Product ID	EDS-408A-MM-ST
Console Port	RS-232 (T x D, R x D, GND), 10-pin RJ45 (115200, n, 8, 1)
Ethernet Interface	Turbo Ring, Master, Coupler, Reseve
Connection	1 removable 6-contact terminal blocks
Hosing	Metal
IP Rating	IP30
Dimension	53.6 x 135 x 105 mm (2.11 x 5.31 x 4.13 in)
Warranty	5 Years
