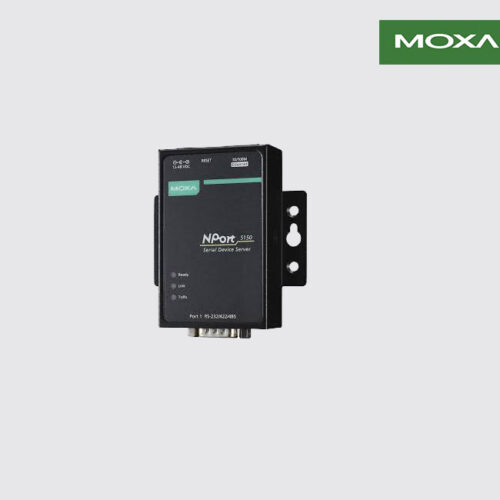

Moxa NPort 5150 1-port RS-232/422/485 serial device servers

Moxa NPort 5150

Moxa NPort 5150 1-port RS-232/422/485 serial device servers

AED750.00 Excl. VAT.

In stock

AED750.00 Excl. VAT.

  • Fast 3-step web-based configuration
  • Versatile TCP and UDP operation modes
  • Connector: 8-pin RJ45
  • Serial : NPort 5250A: RS-232/422/485
Availability: Only 2 left in stock SKU: Nport-5250 Categories: , Tag:

Description

Moxa NPort 5150 1-port RS-232/422/485 serial device servers

Features and Benefits

  • Small size for easy installation
  • Real COM/TTY drivers for Windows and Linux
  • Standard TCP/IP interface and versatile operation modes
  • Easy-to-use Windows utility for configuring multiple device servers
  • Built-in 15 KV ESD protection for all serial signals
  • SNMP MIB-II for network management
  • Configure by Telnet or web browser
  • Adjustable termination resistor for RS-485 ports

Overview

NPort 5150 device servers are designed to make serial devices network-ready in an instant. Use the NPort® 5150 device servers to give your PC software direct access to serial devices from anywhere on the network.

Most Cost-effective Serial-to-Ethernet Solution

Using serial device servers to connect legacy serial devices to Ethernet is now commonplace, and users expect device servers to be cost effective and to provide a broad selection of useful functions. With its full support of Microsoft and Linux operating systems and solid 5-year warranty, the NPort® 5100 series provides the best choice for serial-to-Ethernet converters.

Moxa NPort 5150 1-port RS-232/422/485 serial device servers



 Ethernet Interface
Number of Ports 1
Speed 10/100 Mbps, auto MDI/MDIX
Connector 8-pin RJ45
Magnetic Isolation Protection 1.5 kV built-in
• Serial Interface
Number of Ports 1
Serial Standards NPort 5110: RS-232
NPort 5130: RS-422/485
NPort 5150: RS-232/422/485
Connector DB9 male
RS-485 Data Direction Control ADDC® (Automatic Data Direction Control)
Pull High/Low Resistor for RS-485 1 kΩ, 150 kΩ





Additional information

Brand

Moxa

Connector

NPort 5250A: RS-232/422/485 ,1 Port

Ethernet Interface

8-pin RJ45 , 1 port

Warranty

5 Year Warranty
