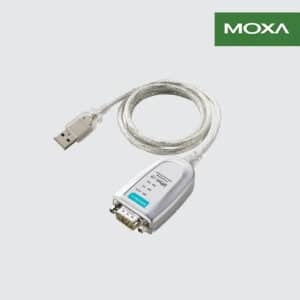

Moxa UPort 1110 1 Port RS-232 USB to Serial Converter

Description

Moxa UPort 1110 1 Port RS-232 USB to Serial Converter

Buy UPort 1000 Series of USB-to-serial converters is the perfect accessory for laptop or workstation computers that do not have a serial port. They are essential for engineers who need to connect different serial devices in the field or separate interface converters for devices without a standard COM port or DB9 connector.

The UPort 1000 Series converts from USB to RS-232/422/485. All products are compatible with legacy serial devices, and can be used with instrumentation and point-of-sale applications.

Features and Benefits

• Compatible with USB 2.0
• 12 Mbps USB data rate
• 921.6 Kbps maximum baudrate for super fast data transmission
• Drivers provided for Windows, WinCE, and Linux
• Mini DB9 female to terminal block adaptor for easy wiring
• LEDs for indicating USB and TxD/RxD activity
• 15 KV ESD protection for all serial ports

Overview

The Moxa UPort 1100 Series enables your laptop or workstation with the ability to communicate between a USB (Universal Serial Bus) port and 1 RS-232 or RS-422/485 serial peripheral. UPort 1110 adds 1 Windows serial COM port via the PC’s USB port, and is compatible with both new or legacy RS-232 devices. This plug and play USB solution is perfect for mobile, instrumentation, and point-of-sale applications.

Moxa UPort 1110 1 Port RS-232 USB to Serial Converter, the UPort 1130 from USB to RS-422/485, and the UPort 1150 from USB to RS-232/422/485.

Typical Application—Surveillance Monitoring System

The most basic video surveillance setup consists of a single camera connected directly to a monitor and recording device.

Moxa’s UPort 1110/1150 converters provide plug-and-play serial device connectivity without having to install new adapter boards, which usually requires opening of computer/server chassis

USB Interface
Compliance: USB 1.0/1.1 compliant, USB 2.0 compatible
Connector:
UPort 1110/1130/1130I/1150: USB Type A
UPort 1150I: USB Type B
Speed: 12 Mbps (Full-Speed USB)
Serial Interface
Number of Ports: 1
Serial Standards:
UPort 1110: RS-232

Additional information
