MGate MB3660-8-2AC Modbus gateway with dual LANs, dual AC power inputs

Introduction

The MGate MB3660 (MGate MB3660-8-2AC and MB3660-16) series gateways are redundant Modbus gateways that convert between the Modbus TCP and Modbus RTU/ASCII protocols. They can be accessible up to 256 TCP master/client devices, or connect to 128 TCP slave/server devices. MGate MB3660 series isolation model provides 2 kV isolation protection suitable for power substation applications. The MGate MB3660 gateway are built to easily integrate Modbus TCP and RTU/ASCII networks.

The MGate MB3660 series gateways offer features that make network integration easy, customizable, and compatible with almost any Modbus network. For large-scale Modbus deployments, MGate MB3660 gateways can effectively connect a large number of Modbus nodes to the same network. The MB3660 series can physically manage up to 248 serial slave nodes for 8-port models or 496 serial slave nodes for 16-port models (the Modbus standard only defines Modbus IDs from 1 to 247). Each RS-232/422/485 serial port can be configured individually for Modbus RTU or Modbus ASCII operation and for different baudrates. Allowing both types of networks to be integrated with Modbus TCP through one Modbus gateway.


MGate MB3660-8-2AC Modbus gateway with dual LANs, dual AC power inputs

Features

  • Innovative Command Learning eliminates the need to key-in SCADA Modbus commands (acts as an agent gateway)
  • High performance through active and parallel polling of serial devices
  • Supports serial (Master) to serial (Slave) communication
  • 2 Ethernet ports with the same IP or dual IP addresses
  • SD card for configuration backup
  • Access by up to 256 TCP master/client devices, or connect to 128TCP slave/server devices
  • Dual VDC or VAC power inputs with wide power input range
  • 3-pin fault relay circuit for event alarms
  • 2 kV isolation protection (for “-I” models)

Ethernet Interface

  • Protocols : Modbus TCP Client/Server
  • Number of Ports : 2 (2 IP addresses)
  • Speed : 10/100 Mbps, Auto MDI/MDIX
  • Connector : RJ45 x 2

Serial Interface / MGate MB3660-8-2AC

Protocols : Modbus RTU/ASCII Master/Slave

  • Number of Ports
  • MGate MB3660-8: 8
  • MGate MB3660I-8: 8
  • MGate MB3660-16:16

Serial Standards : RS-232/422/485, software selectable
Connectors : DB9 male
RS-485 Data Direction Control : ADDC® (automatic data direction control)
Isolation Protection : 2 kV (for “-I” model)

Serial Signals/ MGate MB3660-8-2AC

  • RS-232 : TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
  • RS-422 : Tx+, Tx-, Rx+, Rx-, GND
  • RS-485-4w : Tx+, Tx-, Rx+, Rx-, GND
  • RS-485-2w : Data+, Data-, GND

Software

Configuration Options : Web console, Serial console, Telnet console
Utilities : Device Search Utility (DSU) for Windows 95, 98, ME, NT, 2000, Windows XP, Server 2003, Vista, Server 2008 (x86/x64), Windows Server 2008 R2, Windows 7/8/8.1 (x86/x64), Windows Server 2012 (x64), Windows 2012 R2
Network protocols : TCP/IP, UDP, HTTP, SMTP, NTP, DNS, DHCP Client, SNMPv1 (read only), ARP, Telnet, Radius
Multi-master and Multi-drop
Master mode: 128 TCP slaves/servers
Slave mode: 256 TCP masters/clients

Physical Characteristics

Fault Relay Circuit : 3-pin circuit with current carrying capacity of 2 A @ 30 VDC
External Storage Drive : SD card for configuration backup
Housing : Metal, IP30 protection

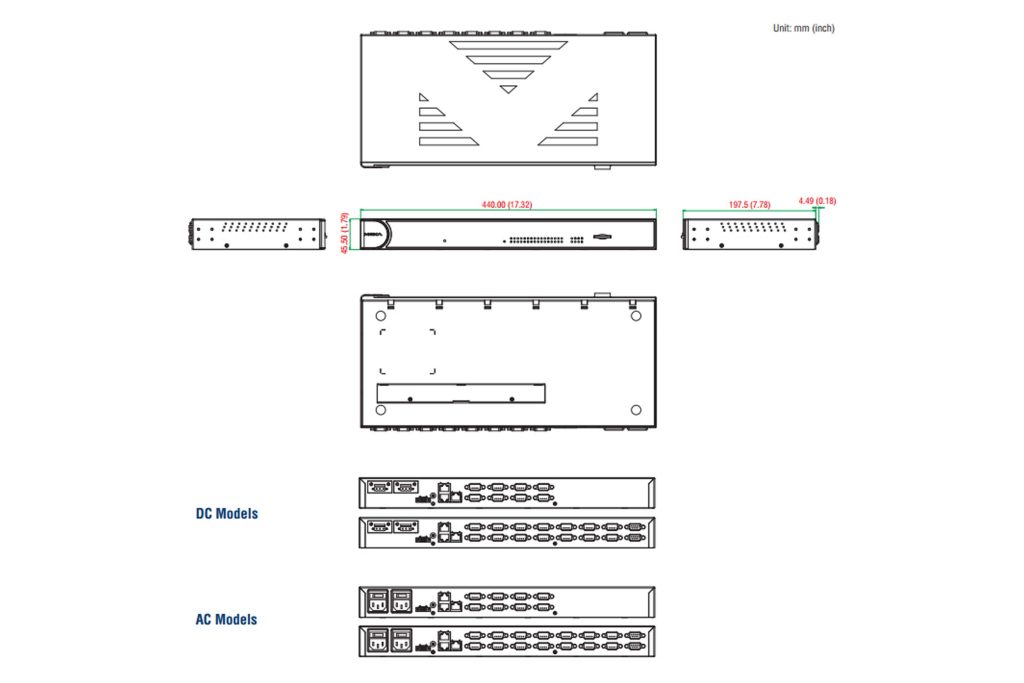

Dimensions
Without ears: 440 x 45 x 198 mm (17.32 x 1.77 x 7.80 in)
With ears: 480 x 45 x 198 mm (18.90 x 1.77 x 7.80 in)

Environmental Limits/ MGate MB3660-8-2AC

Operating Temperature : 0 to 60°C (32 to 140°F)
Storage Temperature : -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity : 5 to 95% (non-condensing)

Power Requirements

Input Voltage

  1. For DC models: Dual 20 to 60 VDC (1.5 kV isolation)
  2. For AC models: Dual 100 to 240 VAC, 47 to 63 Hz

Power Connector : Terminal block (for DC models)

Power Consumption

  1. MGate MB3660-8-2AC: 144mA/110V, 101mA/220V
  2. MGate MB3660-8-2DC: 312mA/24V, 156mA/48V
  3. MGate MB3660I-8-2AC: 244mA/110V, 159mA/220V
  4. MGate MB3660-16-2AC:178mA/110V,120mA/220V
  5. MGate MB3660-16-2DC: 390mA/24V, 195mA/48V

Warranty

Warranty Period : 5 years.

Additional information

Brand

Moxa

Product ID

MGate MB3660-8-2AC

Protocols

Modbus TCP Client/server

No. of Ports

8

Speed

10/100 Mbps, Auto MDI/MDIX

Connector

RJ45 x 2

Warranty

5 Years
