Description

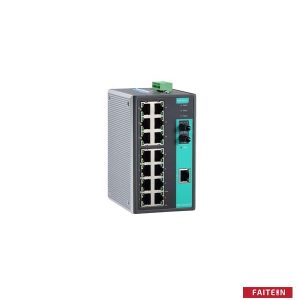

MOXA EDS-316 Unmanaged Ethernet switch with 16 10/100BaseT(X) ports

Introduction

The Moxa EDS-316 Ethernet switches provide an economical solution for your industrial Ethernet connections. These 16-port switches come with a built-in relay warning function that alerts network engineers when power failures or port breaks occur. In addition, the switches are designed for harsh industrial environments, such as the hazardous locations defined by the Class I Div. 2 and ATEX Zone 2 standards.

The switches comply with FCC, UL, and CE standards and support either a standard operating temperature range of -10 to 60°C or a wide operating temperature range of -40 to 75°C. All switches in the series undergo a 100% burn-in test to ensure that they fulfill the special needs of industrial automation control applications. The EDS-316 switches can be installed easily on a DIN rail or in a distribution box.

---

---

Specifications

Input/output Interface

• Alarm Contact Channels : 1 relay output with current carrying capacity of 1 A @ 24 VDC

Ethernet Interface / MOXA EDS-316

1. 10/100BaseT(X) Ports (RJ45 connector)

• EDS-316 models: 16
• EDS-316-MM-SC/MM-ST/MS-SC/SS-SC models: 14
• EDS-316-SS-SC-80 models: 14
• EDS-316-M-SC/M-ST/S-SC models: 15

All models support:

• Auto negotiation speed
• Full/Half duplex mode
• Auto MDI/MDI-X connection

2. 100BaseFX Ports (multi-mode SC connector)

• EDS-316-M-SC models: 1
• EDS-316-MM-SC models: 2
• EDS-316-MS-SC models: 1

3. 100BaseFX Ports (multi-mode ST connector)

• EDS-316-M-ST models: 1
• EDS-316-MM-ST models: 2

4. 100BaseFX Ports (single-mode SC connector)

• EDS-316-MS-SC models: 1
• EDS-316-S-SC models: 1
• EDS-316-SS-SC models: 2

5. 100BaseFX Ports (single-mode SC connector, 80 km)

• EDS-316-SS-SC-80 models: 2

Standards/ MOXA EDS-316

• IEEE 802.3 for 10BaseT
• IEEE 802.3u for 100BaseT(X) and 100BaseFX
• IEEE 802.3x for flow control

DIP Switch Configuration

Ethernet Interface : Port break alarm

Switch Properties

Packet Buffer Size : 1.25 M-bits
MAC Table Size : 4 K
Processing Type : Store and Forward

Power Parameters

Input Voltage

12/24/48 VDC
Redundant dual inputs

Input Current

0.34 A (EDS-316) @ 24 VDC
0.35 A (EDS-316-S-SC) @ 24 VDC
0.35 A (EDS-316-M-SC, EDS-316-M-ST) @ 24 VDC
0.40 A (EDS-316-SS-SC) @ 24 VDC
0.39 A (EDS-316-MM-SC, EDS-316-MM-ST) @ 24 VDC
Connection : 1 removable 6-contact terminal block(s)
Operating Voltage : 9.6 to 60 VDC
Reverse Polarity Protection : Supported
Overload Current Protection : Supported

Physical Characteristics / MOXA EDS-316

Housing : Metal
IP Rating : IP30
Dimensions : 80.1 x 135 x 105 mm (3.15 x 5.31 x 4.13 in)
Weight : 1140 g (2.52 lb.)
Installation
DIN-rail mounting
Wall mounting (with optional kit)

Warranty

Warranty Period : 5 years.

Additional information

Brand	MOXA
Product ID	EDS-316
Standards	IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) and 100BaseFX IEEE 802.3x for flow control
Ethernet Interface	Port break alarm
Housing	Metal
Dimensions	80.1 x 135 x 105 mm (3.15 x 5.13 x 4.13 in)
Warranty	5 Years
