D-Link DES‑105 5‑Port Fast Ethernet Switch

Description

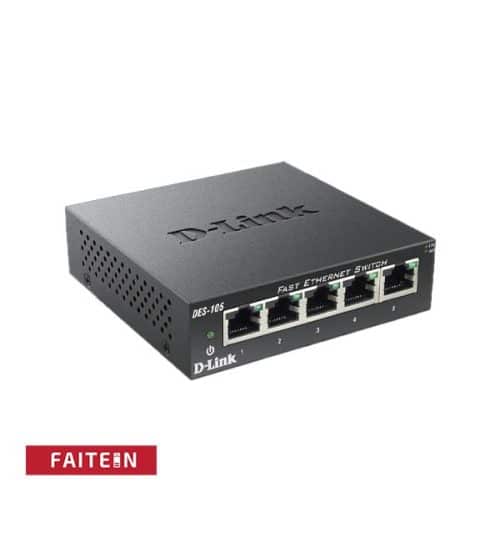

D-Link DES‑105 5‑Port Fast Ethernet Switch

The D-Link DES‑105 Fast Ethernet Switches provide a quick, easy and economical way to add high speed networking to home offices, small and medium businesses. With data transfer speeds of up to 200 Mbps the DES-105/DES-108 are ideal for fast file transfers. They provide five or eight ports for easy expansion of your network for connecting printers, scanners, storage,  and backup devices to any network.

The DES-105 5-Port Fast Ethernet Unmanaged Desktop Switch is a 5-port 10/100 Mbps Fast Ethernet switch that allows you to quickly set up a wired network. Connect the DES-105 to multiple computers together to share files and folders, or connect it to a router to share an Internet connection.

---

---

Technical Specifications

Switching Fabric : 1.0  Gbps

Standards :

• EEE 802.3 10BASE-T Ethernet (twisted-pair copper)
• IEEE 802.3u 100BASE-TX Fast Ethernet
  (twisted-pair copper)
• ANSI/IEEE 802.3 NWay auto-negotiation

Protocol : CSMA / CD

Data transfer rate : Ethernet 10 Mbps (half duplex) | 20 Mbps (full duplex)

Topology : Star

Network Cable : 10 Base-T UTP CAT 3, 4, 5/ 5e (100 m max.) | EIA / TIA-586 100-ohm STP (100 m max.)

Media interface Exchange : Auto MDI / MDIX adjustment for all ports

LED Indicators : Per port : Link / Activity

Transmission Method : Store-and-forward

MAC address table : 2K

MAC Address Learning : Automatic update

Packet filtering forward rate : Ethernet 14800 pps per port

Ram buffer : 384 Kbytes per device

General specification

• DC input : External 5 v/ 1 A level V power adapter
• power consumption

Power-On (Standby):
– DC input: 0.5 watts
– AC input: 1.0 watts
• Maximum:
– DC input: 2.01 watts
– AC input: 3.10 watts

• Heat Dissipation : Power On (Standby) AC input : 3.41 BTU/h Maximum DC input : 9.548 BTU/h
• Operating Temperature : 32 to 122 ˚F ( 0 to 50˚C )
• Storage Temperature : 14 to 158˚F (-10 to 70˚C )
• Operating Humidity : 10 % to 90 % RH non-condensing
• Storage Humidity : 5% to 90% RH non-condensing
• Dimension : 100 x 98 x 28 mm
• Weight : 265 grams

Additional information

Brand	D-Link
Product ID	DES-105
number of ports	5 to 14 ports
Hosing	Metal
Dimension	100 x 98 x 28 mm
