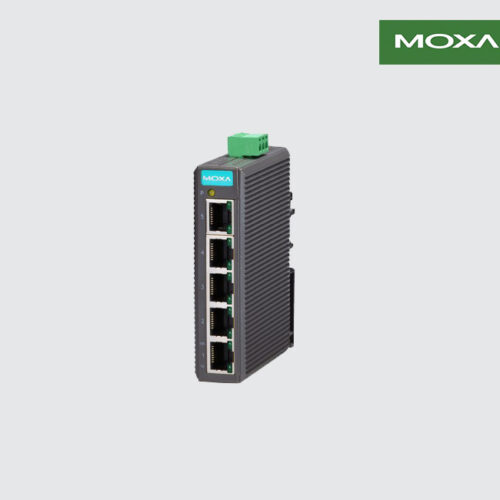

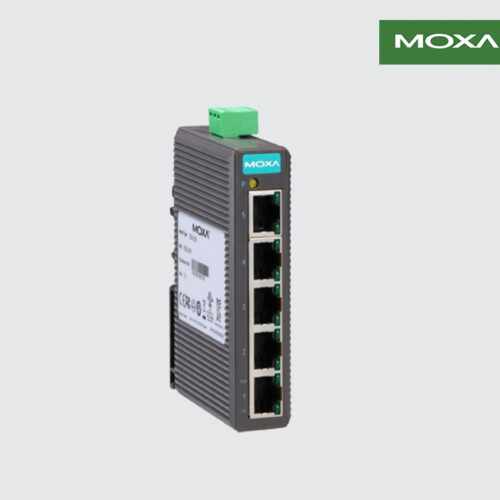

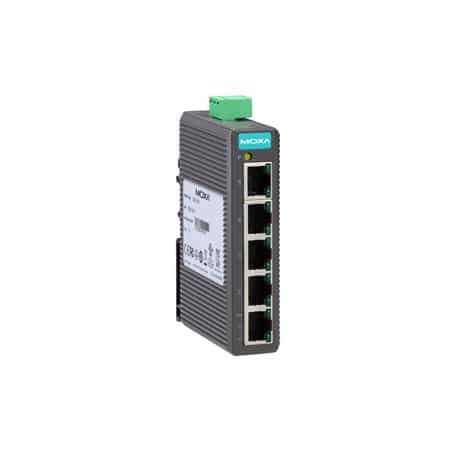

Moxa EDS-205 5 Port 10/100 Base Industrial Ethernet Switch

Description

Moxa EDS-205 5 Port 10/100 Base Industrial Ethernet Switch

Moxa EDS-205 Entry-level un-managed Ethernet switch with 5 10/100BaseT(X) ports, plastic housing, -10 to 60°C operating temperature

Highlights

• 10/100BaseT(X) (RJ45 connector), 100BaseFX ( multi-mode, SC/ST connectors)
• IEEE802.3/802.3u/802.3x support
• Broadcast storm protection
• DIN-Rail mounting ability
• -10 to 60°C operating temperature range

Includes

• 1 x EDS-205/208 Series unit
• 1 x installation guide
• 1 x warranty statement

The EDS-205/208 switches are rated to operate at temperatures ranging from -10 to 60°C, and are rugged enough for any harsh industrial environment. The switches can be easily installed on a DIN-rail as well as in distribution boxes. The DIN-rail mounting capability, wide operating temperature, and the IP30 housing with LED indicators make the plug-and-play EDS-205/208 switches easy to use and reliable

Technology
Standards:
IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X) and 100BaseFX
IEEE 802.3x for Flow Control
Processing Type: Store and Forward

Switch Properties
MAC Table Size: 1 K
Packet Buffer Size: 512 kbit

Interface
RJ45 Ports: 10/100BaseT(X) auto negotiation speed, Full/Half duplex
mode, and auto MDI/MDI-X connection
Fiber Ports: 100BaseFX ports (SC/ST connector, multi-mode)
