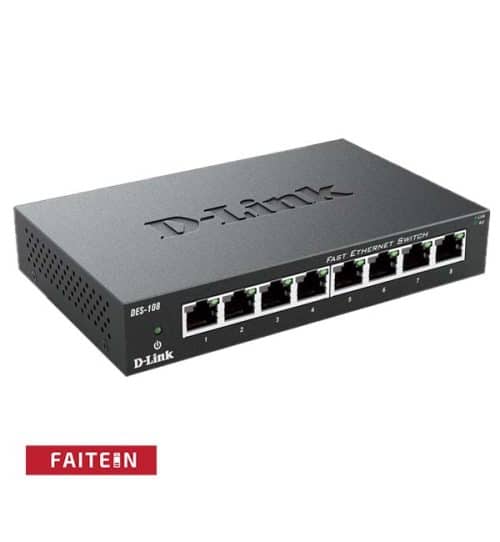

D-Link DES‑108 8‑Port Fast Ethernet Unmanaged Desktop Switch

Description

D-Link DES‑108 8‑Port Fast Ethernet Unmanaged Desktop Switch



D-Link DES‑108 Fast Ethernet switch provides a cost-effective way for SOHO and SMB to create a small network and connect computers, wireless Access Points, IP cameras, network printers and other Ethernet devices quickly and easily without complicated configurations. This switch comes with 8 Fast Ethernet ports with an auto-sensing function to detect the maximum speed of the connected devices, allowing you to run your network with the best possible performance. Its fan-less design makes the DES-108 completely silent so it is ideal for offices, libraries or meeting rooms.

With data transfer speeds of up to 200 Mbps the DES-105/DES-108 are ideal for fast file transfers. They provide five or eight ports for easy expansion of your network for connecting printers, scanners, storage, and backup devices to any network.

---

---

Technical Specifications

Switching Fabric : 1.6 Gbps

Standards :

• IEEE 802.3x Flow Control
• IEEE 802.1pQoS
• IEEE 802.3az Energy-Efficient Ethernet (EEE)

Data Transfer Rates

Fast Ethernet:
– 100 Mbps(half duplex)
– 200 Mbps(full duplex)

Topology : Star

Network Cables

100BASE-TX:
– UTP CAT 5/5e (100 m max.)
– EIA/TIA-568 100-ohm STP (100 m max.)

Media Interface Exchange : Auto MDI/MDIX adjustment for all ports

LED Indicators : Per device: Power

Transmission Method : Store and forward

MAC Address Table : 1 k

MAC Address Learning : Automatic Update

Packet Filtering/Forwarding Rates : Fast Ethernet: 148,800 pps per port

RAM Buffer : 768 Kbytes per device

General Specifications

DC Input : External 5V/1 A Level “V” Power Adapter

Power Consumption :

Power-On (Standby):
– DC input: 0.55 watts
– AC input: 1.0 watts
• Maximum:
– DC input: 2.8 watts
– AC input: 4.5 watts

Heat Dissipation :

Power-On (Standby) AC input: 3.41 BTU/h
Maximum DC input: 9.548 BTU/h

MTBF : 511323 Hours

Operating Temperature :  32 to122 ˚F (0 to50 ˚C)

Storage Temperature : 14 to158 ˚F (-10 to70 ˚C)

Dimensions : 162 x 102 x 28 mm

Weight : 412 g.

Additional information

Brand	D-Link
Product ID	DES-108
Number of ports	5 to 14 ports
Main type of ports	100 BASE-TX fast Ethernet
Housing	Metal
Dimensions	162 x 102 x 28 mm
Weight	412 g
