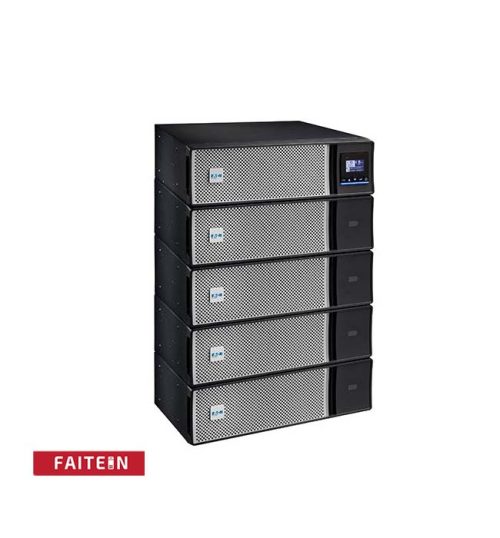

Eaton 5PXEBM72RT3UG2 extended battery module (EBM), 3U, 72V, Used with 5PX 3000 3U UPS models

Description

Eaton 5PXEBM72RT3UG2 extended battery module (EBM), 3U, 72V, Used with 5PX 3000 3U UPS models

Buy Eaton 5PXEBM72RT3UG2 Gen2 extended battery module (EBM), 72 V, Rack/tower, 3U used with 5PX3003U UPS models

GENERAL SPECIFICATIONS

• PRODUCT NAME : Eaton 5PX Gen2 Extended Battery Module
• CATALOG NUMBER : 5PXEBM72RT3UG2
• UPC : 743172104694
• PRODUCT LENGTH/DEPTH : 483 mm
• PRODUCT HEIGHT : 129 mm
• PRODUCT WIDTH : 438 mm
• PRODUCT WEIGHT : 39.7 kg
• COMPLIANCES
  IEC/EN 62040-1
  IEC/EN 62040-2
  IEC/EN 62040-3
  RoHS Compliant
  REACH
  UL 1778
  CSA 22.2
• CERTIFICATIONS/Eaton 5PXEBM72RT3UG2
  CE
  cTUVus
  EAC
  Cm
  UKCA
  Ukr
  RCM
• MODEL CODE : Eaton 5PX EBM 72V RT3U G2

PRODUCT SPECIFICATIONS

• SPECIAL FEATURES : Add up to 4 extended battery modules (EBM) to Eaton 5PX Gen2 UPS models
• TYPE : Extended battery module
• FORM FACTOR : Rack/tower
• RACK SIZE : 3U
• COLOR : Black/silver
• RACK MOUNTING KIT : Yes
• PACKAGE CONTENTS

1.  Extended battery module (EBM)
2.  EBM power cable
3. EBM detection cable
4. Rack-mounting kit
5. Mounting plate
6. Quick-start guide
7. Safety instructions

• TYPE OF ACCESSORY : Battery/accumulator
• NUMBER OF OUTPUT CONNECTIONS FRENCH STANDARD (TYPE E) : 0
• NUMBER OF OUTPUTS C19 : 0
• NUMBER OF OUTPUTS HARDWIRED : 0
• NUM OF OUTPUTS PC (SCHUKO) : 0
• BATTERY RATING : 12 V / 9 Ah
• BATTERY TYPE : Sealed, lead-acid
• BATTERY QUANTITY : 12
• EFFICIENCY (ECO-MODE) : 0
• VOLTAGE DISTORTION OUTPUT (LINEAR LOAD) – MAX : 0.
