Description

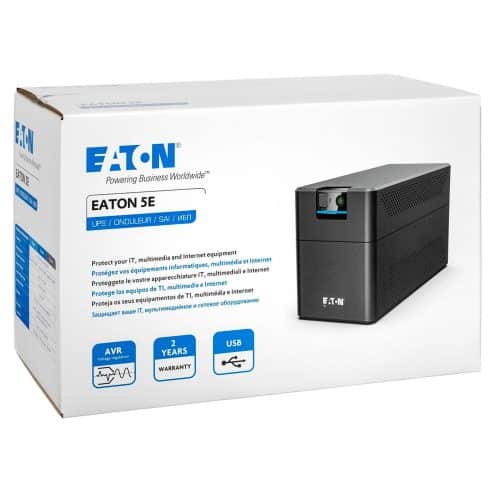

Eaton UPS 5E Gen2 USB IEC, 1600 VA, 900 W, Input: C14, Outputs: (6) C13, Tower PN: 5E1600UI

Buy Eaton UPS 5E Gen2 USB IEC, 1600 VA, 900 W, Input: C14, Outputs: (6) C13, Tower PN: 5E1600UI Best price in Dubai UAE

Brand: Eaton

Part Number: 5E1600UI

Line Interactive with Automatic Voltage Regulation Topology with Tower Type Configurations.

1600VA/900W Rating (VA/Watts)

Essential line interactive UPS

Eaton 5E Gen2 delivers efficient, affordable power protection for critical applications in both residential and professional settings

Power protection

• Eaton 5E Gen2 UPS protects application and data against power loss.
• Double-boost Automatic Voltage Regulation (AVR) technology regulates
  grid fluctuations (under and overvoltage) to save battery power in the
  event of power outage.
• A wide product range covers the power requirements of many IT devices.
• Auto-restart function enables the UPS to restart automatically when
  mains power recovers after a total battery discharge

GENERAL SPECIFICATIONS
PRODUCT NAME
Eaton 5E Gen2 UPS
CATALOG NUMBER
5E1600UI
EAN
3553340704321
PRODUCT LENGTH/DEPTH
330 mm
PRODUCT HEIGHT
180 mm
PRODUCT WIDTH
133 mm
PRODUCT WEIGHT
8.89 kg
WARRANTY
2 year
COMPLIANCES
CB
LVD Directive
EMC Directive
RoHS Directive
Packaging Directive
WEEE Directive
Batteries Directive
CERTIFICATIONS
IEC/EN 62040-1
IEC/EN 62040-2
CE
EAC
UKCA
Cm
Ukr
IEC/EN 62040-3
PRODUCT SPECIFICATIONS
SECONDARY FREQUENCY – MAX
60 Hz
WATTAGE
900 W
FORM FACTOR
Tower
INCLUDES NETWORK CARD
No
INPUT CONNECTION
C14
INPUT VOLTAGE – MIN
140 V
OUTPUT VOLTAGE – MAX
257 V
SECONDARY FREQUENCY – MIN
50 Hz
SOFTWARE COMPATIBILITY
Eaton UPS Companion (enables safe system shutdown, energy usage metering and configuration of UPS settings)
BATTERY TYPE
Sealed, lead-acid
EFFICIENCY
95
SPECIAL FEATURES
Automatic Voltage Regulation (AVR)
Saves space with a compact tower design
HID-compliant USB port, for automatic integration with major operating systems (Windows/Mac OS/Linux)
CONSTRUCTION TYPE
Free standing model
OUTPUT VOLTAGE – MIN
195 V
COLOR
Black
EXTENDED BATTERY CAPABILITY
No
OUTPUT VOLTAGE RANGE
195-257 V
TOPOLOGY
Line-interactive
SURGE PROTECTION
Yes
INPUT NOMINAL VOLTAGE
230V default (220/230/240V)
INPUT FREQUENCY RANGE
45-63 Hz
INTERNAL BYPASS
No
INPUT VOLTAGE – MAX
300 V
VOLTAGE TYPE
AC
PHASE (OUTPUT)
1
BATTERY MANAGEMENT
Automatic battery test, deep-discharge protection, cold-start capable
AUTO SHUTDOWN FUNCTION
Yes
NUMBER OF OUTPUTS C13
6
OPERATING TEMPERATURE – MIN
0 °C
VA RATING
1600 VA
POTENTIAL FREE SWITCH CONTACT
No
RECEPTACLE
(6) C13
PHASE (INPUT)
1
PACKAGE CONTENTS
(2) IEC-IEC output cables
Quick start
Safety instructions
FEED TYPE
1
RUNTIME GRAPH
View runtime graph
USER INTERFACE
LEDs
BATTERY QUANTITY
2
OPERATING TEMPERATURE – MAX
40 °C
VOLTAGE
230V
HOT SWAP POWER
No
TEMPERATURE RANGE
0° to 40°C (32° to 104°F)
ETHERNET INTERFACE
No
COMMUNICATION
USB port (HID compliant)
RELATIVE HUMIDITY
0-90% non-condensing
OUTPUT APPARENT POWER
1600 VA
RACK MOUNTING KIT
No
OUTPUT FREQUENCY
50/60 Hz
TYPE OF INTERFACE
USB
PRIMARY FREQUENCY – MIN
45 Hz
BATTERY RATING
12 V / 7 Ah
TYPE
UPS
OUTPUT NOMINAL VOLTAGE
230V
EXPANSION SLOTS
No
INPUT VOLTAGE RANGE
140-300 V
NOMINAL FREQUENCY
50/60 Hz
PRIMARY FREQUENCY – MAX
63 Hz
