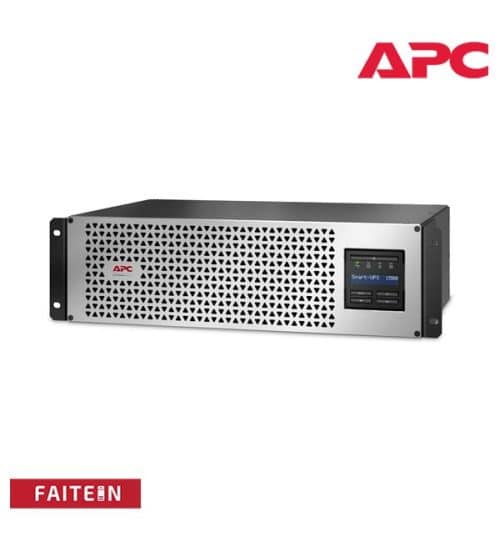

APC SMTL1500RMI3UC Smart-UPS, Line Interactive, 1500VA, Lithium-ion, Rackmount 3U, 230V, 6x IEC C13 outlets, SmartConnect Port + Smart-Slot, Short Depth, AVR, LCD

APC SMTL1500RMI3UC Smart-UPS, Line Interactive, 1500VA, Lithium-ion, Rackmount 3U, 230V, 6x IEC C13 outlets, SmartConnect Port + Smart-Slot, Short Depth, AVR, LCD

APC SMTL1500RMI3UC Smart-UPS, Line Interactive, 1500VA, Lithium-ion, Rackmount 3U

APC SMTL1500RMI3UC Smart-UPS, Line Interactive, 1500VA, Lithium-ion, Rackmount 3U, 230V, 6x IEC C13 outlets, SmartConnect Port + Smart-Slot, Short Depth, AVR, LCD

AED 5,380.00 Excluding VAT

Out of stock

AED 5,380.00 Excluding VAT

SMTL1500RMI3UC

Availability: Out of stock SKU: UPS-APC-RT-SMTL1500RMI3UC Categories: , Tags: ,
Compare

Description

APC SMTL1500RMI3UC Smart-UPS, Line Interactive, 1500VA, Lithium-ion, Rackmount 3U, 230V, 6x IEC C13 outlets, SmartConnect Port + Smart-Slot, Short Depth, AVR, LCD

This APC SMTL1500RMI3UC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. The 1500VA line interactive 3U short depth rackmount UPS provides pure sine wave power to support critical electronics during power disruptions. It comes with IEC 320 C14 input and 6x IEC 320 C13 outlets, offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. It has a Smart-Slot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via Power Chute Network Shutdown. The UPS can connect to Eco-Struxure IT or third-party centralized management platforms. It provides surge protection against lightning strikes, power sags, brownouts and surges. The SMTL UPS has a 5-year warranty on the UPS and Lithium-ion battery.


APC SMTL1500RMI3UC Smart-UPS, Line Interactive, 1500VA, Lithium-ion, Rackmount 3U, 230V




Specifications

Main

Main Input/Output Voltage : 230 V

Other Input/Output Voltage : 220 V / 240 V

Rated power in W : 1350 W

Rated power in VA : 1500 VA

Product or component type : Uninterruptible power supply (UPS)

Input/Output Connection Type : IEC 60320 C14 / 6 IEC 60320 C13

Number of Rack Units : 3U

Battery Type : Li-Ion (Lithium-Ion)

Provided equipment

  • Installation guide
  • Rack mounting support rails
  • Smart UPS signaling RS-232 cable
  • USB cable

Range of product : Smart-UPS

Battery & Runtime

recharge time : 3 h

design life : 8…10 years

charger power : 100W rated

Physical

Color : Black with silver front bezel

Height : 13.1 cm

Width : 43.8 cm

Depth : 30.2 cm

Net Weight : 19.5 kg

Mounting preference : No preference

Mounting Mode : Rack-Mounted

USB compatible : Yes

Input

protection type : Circuit breaker

voltage limits : 151…302 V adjustable, 160…280 V

Network frequency : 50/60 Hz +/- 3 Hz auto-sensing

Output

Crest factor : 3 : 1

Graph start point : 150

Harmonic distortion : Less than 5%

Maximum configurable power in VA : 1500 VA

Maximum configurable power in W : 1350 W

Transfer time : 6 MS typical : 10 MS maximum

UPS type : Line interactive

Wave Type : Sine wave

Output Frequency : 50/60 Hz +/- 3 Hz sync to mains

Environmental

Acoustic level : 45 dBA

Heat dissipation : 135 Btu/h

Operating altitude : 0…10000 ft

Ambient air temperature for operation : 0…40 °C

ambient air temperature for storage : -15…45 °C

Storage altitude : 0.0000000000…7620.0000000000 m

IP degree of protection : IP20

Relative humidity : 0…95 % non-condensing

Storage Relative Humidity : 0…95 % non-condensing

Communications & Management

Alarm : Audible and visible alarms

Control panel : Multifunction LCD status and control console

Free slots : 1

Communication port support : SmartConnect Ethernet port: for cloud monitoring feature availability varies by terms of use

Alarm : Alarm when on battery : distinctive low battery alarm

Surge Protection and Filtering

Surge energy rate : 645 J

Noise Suppression : Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449

Packing Units

Unit Type of Package 1 : PCE

Number of Units in Package 1 : 1

Package 1 Height : 27.9 cm

Package 1 Width : 44.8 cm

Length of the package 1 : 58.4 cm

Weight : 22.68 kg

Contractual Warranty

Warranty : 5 Years repair or replace.

Additional information

Brand

APC

Product ID

SMTL1500RMI3UC

Topology

Line-Interactive

Rating (VA/Watts)

1500 VA/1350 W

Number of Rack Units

3U

Battery Type

Li-Ion (Lithium-Ion)

Dimensions (H x W x D in cm)

13.1 x 43.8 x 30.2 cm

Net Weight

19.5 kg

Warranty

5 Years repair or replace
