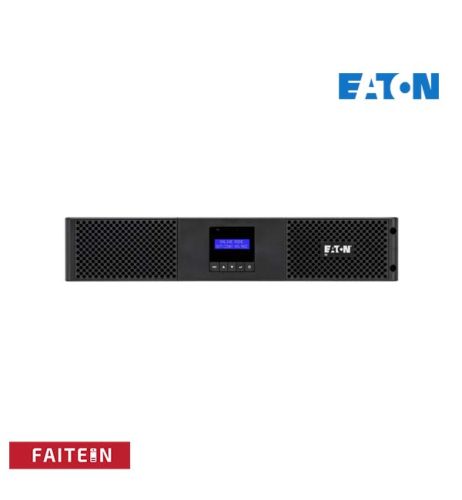

Eaton 9E1000IR UPS, 1000 VA, 900 W, Input: C14, Outputs: (4) C13, Rack, 2U

Description

Eaton 9E1000IR UPS, 1000 VA, 900 W, Input: C14, Outputs: (4) C13, Rack, 2U

Buy Eaton 9E1000IR UPS, 1000 VA, 900 W, Input : C14, Output : (4) C13, Rack, 2U. Sealed, lead-acid battery, 12V / 7Ah battery rating.

---

---

General specifications

Product Name : Eaton 9E UPS

Catalog Number : 9E1000IR

Product Length/Depth : 438 mm

Product Height : 86.5 mm

Width : 438 mm

Net Weight : 17.6 kg

Compliances : CE Marked , TUV

Certifications : IEC/EN 62040-1, IEC/EN 62040-2, CE

Battery

Battery type : Sealed, lead-acid

Replacement : Replaceable batteries

Battery quantity : 3

management

• Temperature compensated charging method
• Automatic battery test
• Deep discharge protection

Battery rating : 12 V / 7 Ah

Extended battery capability : No

Electrical output

Receptacle : (4) C13

Voltage / Wattage : 230 V / 900 W

Output power factor : 0.9

voltage range : 220/230/240 V +/- 2%

Output waveform : Sine wave

nominal voltage : 230V default (220/230/240V)

Voltage distortion output (linear load) – max : 3

Feed type : 1

Topology : Online/Double-conversion

VA rating : 1000 VA

Electrical input

Input connection : C14

Input nominal voltage : 230V default (220/230/240V)

Nominal frequency : 50/60 Hz

Input power factor : > .99

Input frequency range : 40-70 Hz

Communications

Includes network card : No

Communication

• USB port (HID compliant)
• Serial port (RS232)
• Mini-terminal block for remote power off

Ethernet interface : No

User interface : Multilingual LCD display

Potential free switch contact : Yes

Expansion slots : One slot for optional communication card

Software compatibility : Eaton Intelligent Power Manager, Eaton Intelligent Power Protector

Type of interface : Other

Environmental

Altitude : 3000 M

Noise level : < 41 dB at 1 meter

Temperature range : 0° to 40°C (32° to 104°F)

Relative humidity : 0-96% non-condensing

Additional specifications

Construction type : 482.6 mm (19 inch) device

Package contents

• UPS
• (2) IEC-IEC output cables
• USB cable
• Rack-mounting kit (rails and brackets)
• Safety instructions
• Quick-start guide

Phase (output) : 1

Internal bypass : Yes

Auto shutdown function : Yes

Color : Black

Efficiency : 90

Rack mounting kit : Yes

Phase (input) : 1

Hot swap power : No.

Additional information

Brand	EATON
Product ID	9E1000IR
Battery type	Sealed, lead-acid
Battery rating	12 V / 9 Ah
Voltage / Wattage	230 V / 900 W
Dimensions (H x W x D in mm)	86.5 x 438 x 438 mm
