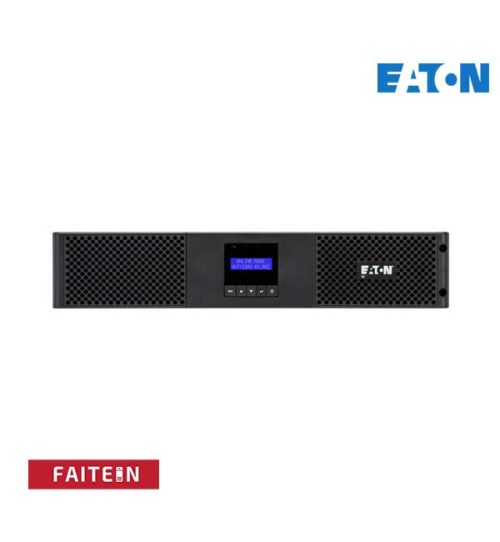

Eaton 9E3000IR UPS, 3000 VA, 2700 W, Input: C20, Outputs: (6) C13, (1) C19, Rack, 2U

Description

Eaton 9E3000IR UPS, 3000 VA, 2700 W, Input: C20, Outputs: (6) C13, (1) C19, Rack, 2U

Buy Eaton 9E3000IR UPS, 3000 VA, 2700 W, Input: C20, Outputs: (6) C13, (1) C19, Rack, 2U, Sealed, lead-acid, with 2 year warranty.

---

---

General specifications

Product name : Eaton 9E UPS

Catalog Number : 9E300IR

Product Length / Depth : 608 mm

Product Height : 86.5 mm

Width of the Product : 438 mm

Product Weight : 31.3 kg

Warranty : 2 Years

Battery

Battery Type : Sealed, lead acid

Replacement : Replaceable battery

Quantity : 6

Battery management :

• Temperature compensated charging method
• Automatic battery test
• Deep discharge protection

Battery rating : 12 V / 9Ah

Extended Battery Capability : Yes

Electrical output

• Receptacle : (6) C13 + (1) C19
• Voltage  : 230 V
• Wattage : 2700 W
• Output Power Factor : 0.9
• Output voltage range : 220/230/240 V +/- 2%
• Output Waveform : Sine wave
• Output Nominal Voltage : 230V default (220/230/240V)
• Voltage distortion output (linear load) – max : 3
• Feed Type : 1
• Topology : Online / Double conversion
• VA Rating : 3000 VA

Electrical input

• Input Connection : C14
• Input nominal voltage : 230V default (220/230/240V)
• Nominal frequency : 50 /60 Hz
• Input power factor : > .99
• Input cord length : 1.8 m
• Input frequency range : 40-70 Hz

Communications

Includes network card : No

Communication :

• USB port (HID compliant)
• Serial port (RS232)
• Mini-terminal block for remote power off

Ethernet interface : No

User interface : Multilingual LCD display

Potential free switch contact : Yes

Expansion slots : One slot for optional communication card

Software compatibility : Eaton Intelligent Power Manager, Eaton Intelligent Power Protector

Type Of Interface : Other.

Environmental

Altitude : 3000 m

Noise Level : < 45 dB at 1 meter

Temperature Range : 0° to 40°C (32° to 104°F)

Relative Humidity : 0-96% non-condensing

Additional specifications

Construction Type : 482.6 mm (19 inch) device

Package Contents :

• UPS
• (2) IEC-IEC output cables
• USB cable
• Rack-mounting kit (rails and brackets)
• Safety instructions
• Quick-start guide

Phase (Output) : 1

Internal Bypass : Yes

Auto shutdown Function : Yes

Color : Black

Efficiency : 91

Rack mounting kit : Yes

Phase (input) : 1

Hot Swap Power : No.

Additional information

Brand	Eaton
Warranty	2 Years
Product ID	9E3000IR
Rating (VA/Watts)	3000VA/2700W
Dimensions(H x W x D in mm)	86.5 x 438 x 608 mm
Form Factor	Rack-2U
Topology	On-Line Double Conversion
