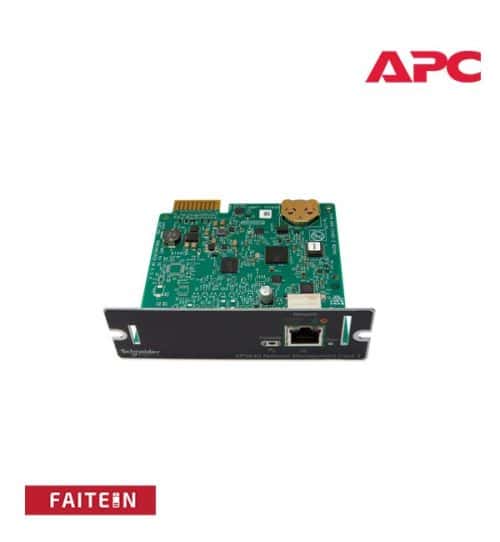

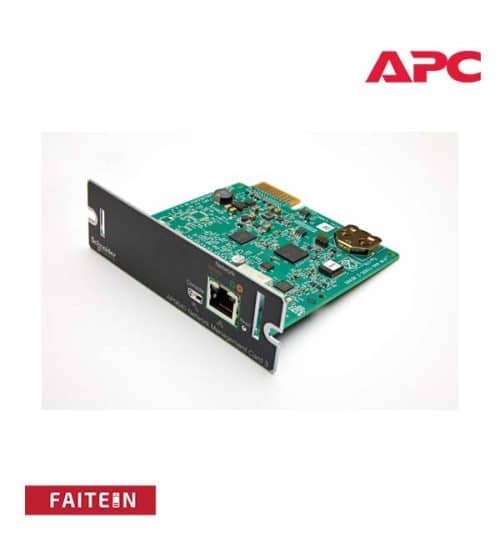

APC AP9640 UPS Network Management Card 3

Introduction

This APC AP9640 UPS Network Management Card enables remote monitoring and control of individual Single Phase and Three Phase APC UPS via secure network browsers or external command line interfaces. The NMC is connected to the UPS via a web browser, command line interface, or SNMP. The flash upgradeable firmware installs maintenance releases of firmware remotely using FTP.

The Network Management Card provides multiple-user access, pre-loaded multiple language support, advanced security protection, and data and event log space. The NMC card with Power Chute Network Shutdown provides unattended, graceful shutdown of physical servers, virtual machines, and HCI clusters. The network card supports user-selectable password with strong password rules and a reset password mechanism.

Specifications

Main

• product or component type : UPS network management cards
• Provided equipment : User manual, USB cable

Physical

• Height : 3.8 cm
• Width : 12.1 cm
• Depth : 11.4 cm
• net weight : 0.08 kg
• Mounting preference : No preference
• mounting mode : Not rack-mountable

Conformance

• Standards : EN 55022 class A, EN 55024, ICES-003
• Product certifications : AS/NZS 3548 (C-Tick) class A, FCC part 15 class A, GOST, VCCI class A

Environmental/ APC AP9640

• Ambient air temperature for operation : 0…45 °C
• Operating altitude : 0…10000 ft
• Relative humidity : 0…95 %
• ambient air temperature for storage : -5…45 °C
• Storage altitude : 0.00…15240.00 m
• Storage Relative Humidity : 0…95 %

Communications & Management

• Authentication : Radius

Packing Units

• Unit Type of Package 1 : PCE
• Number of Units in Package 1 : 1
• Package 1 Height : 5.1 cm
• Package 1 Width : 15.9 cm
• Package 1 Length : 23.5 cm
• Package 1 Weight : 0.34 kg

Contractual warranty

Warranty : 2 years repair or replace.
