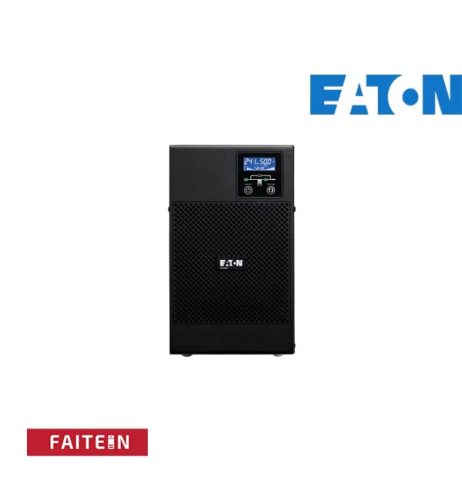

Eaton 9E2000I UPS, 2000 VA, 1600W, Input: C14, Output: (6) C13, Tower

Description

Eaton 9E2000I UPS, 2000 VA, 1600W, Input: C14, Output: (6) C13, Tower

Buy Eaton 9E2000I UPS, 2000 VA, 1600W, Input : C14, Output : (6), Product Length 399 mm, Product Height 330 mm, Product Width 190 mm, Weight 15.8 kg

---

---

GENERAL SPECIFICATIONS

• PRODUCT NAME : Eaton 9E UPS
• CATALOG NUMBER : 9E2000I
• UPC : 786689166571
• PRODUCT LENGTH/DEPTH : 399 mm
• PRODUCT HEIGHT : 330 mm
• PRODUCT WIDTH : 190 mm
• PRODUCT WEIGHT : 15.8 kg
• WARRANTY : 2 year
• COMPLIANCES : CE Marked/ TUV
• CERTIFICATIONS
  IEC/EN 62040-1
  IEC/EN 62040-2
  CE
  EAC

Battery/ Eaton 9E2000I

• Battery type :Sealed, lead-acid
• Battery Replacement : Replicable batteries
• Battery Quantity : 6
• Battery Management : Automatic battery test, Deep discharge protection.
• Battery Rating : 12 V/7 Ah
• Extended Battery Capability : Yes

ELECTRICAL OUTPUT

• RECEPTACLE : (6) C13
• VOLTAGE : 230V
• WATTAGE : 1600W
• OUTPUT POWER FACTOR : 0.8
• OUTPUT VOLTAGE RANGE : 220/230/240 V +/- 2%
• OUTPUT WAVEFORM : Sine wave
• OUTPUT NOMINAL VOLTAGE : 230V default (220/230/240V)
• VOLTAGE DISTORTION OUTPUT (LINEAR LOAD) – MAX : 3
• FEED TYPE : 1
• TOPOLOGY : Online/Double-conversion
• VA RATING : 2000 VA

ELECTRICAL INPUT

• INPUT CONNECTION : C14
• INPUT NOMINAL VOLTAGE : 230V default (220/230/240V)
• NOMINAL FREQUENCY : 50/60 Hz
• INPUT POWER FACTOR : >.99
• INPUT VOLTAGE RANGE : 176-300 V (100 V-300 V with derating)
• INPUT FREQUENCY RANGE : 40-70 Hz

COMMUNICATIONS/ Eaton 9E2000I

INCLUDES NETWORK CARD : No

COMMUNICATION

• USB port (HID compliant)
• Serial port (RS232)
• Communication slot

ETHERNET INTERFACE : No
USER INTERFACE : LCD Display
POTENTIAL FREE SWITCH CONTACT : No
EXPANSION SLOTS : One slot for optional communication card
SOFTWARE COMPATIBILITY :  Eaton Intelligent Power Manager, Eaton Intelligent Power Protector
TYPE OF INTERFACE : Other

ENVIRONMENTAL

ALTITUDE : 3000 m
NOISE LEVEL : <37 dB at 1 meter
TEMPERATURE RANGE : 0° to 40°C (32° to 104°F)
RELATIVE HUMIDITY : 0-95% non-condensing

ADDITIONAL SPECIFICATIONS/ Eaton 9E2000I

CONSTRUCTION TYPE : Free standing model

PACKAGE CONTENTS

• UPS
• USB cable
• Serial cable
• Quick-start guide
• Safety instructions

PHASE (OUTPUT) : 1
INTERNAL BYPASS : Yes
AUTO SHUTDOWN FUNCTION : Yes
COLOR : Black
EFFICIENCY : 91
RACK MOUNTING KIT : No
PHASE (INPUT) : 1
HOT SWAP POWER : No

Additional information

Brand	Eaton
Product Name	Eaton 9E UPS
Catalog Number	9E2000I
Dimension ( H x W x D in mm)	330 x 190 x 399 mm
Product Weight	15.8 kg
Voltage/ Wattage	230 V/ 1600W
Warranty	2 Years
