Eaton INDRELAY-MS Industrial relay card MS

Eaton INDRELAY-MS Industrial relay card MS

Eaton INDRELAY-MS Industrial relay card MS

AED790.00 Excl. VAT.

Out of stock

AED790.00 Excl. VAT.

Highlights

  • Communicates UPS info to an  alarm system, PLC or PC via dry contacts
  • Easy to install in an open Mini-Slot bay on a compatible Eaton UPS system
  • Features 5 isolated dry-contact outputs and one isolated dry contact input
  • Offers a cable exit opening for conduit up to 12.7 mm (0.5 in.)

System Requirements

Compatible with Eaton 93PM and 93E Series UPS systems

Availability: Out of stock SKU: UPS-EATON-ACC-INDRELAY-MS Categories: , Tag:
Compare Compare

Description

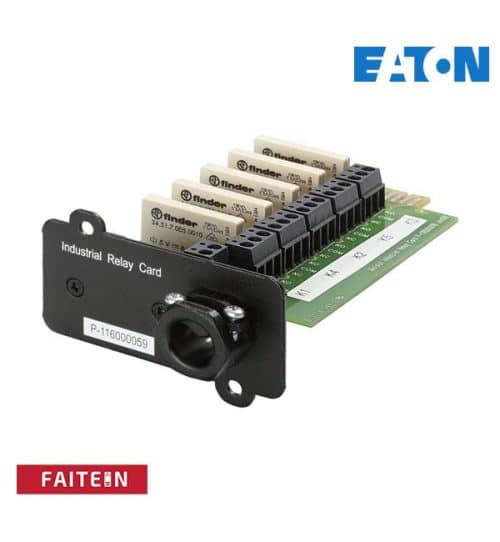

Eaton INDRELAY-MS Industrial relay card MS

Buy Eaton INDRELAY-MS Industrial Relay Card for Eaton UPS Systems Communicates with a UPS system and a computer, PLC or alarm system to protect connected equipment by initiating automatic shutdowns.

Features

Relay Card Works with Eaton UPS Systems

This INDRELAY-MS relay card enables network monitoring of UPS system status through a connected computer with a dedicated adapter that provides the essential dry-contact interface between an Eaton UPS and any relay-connected computer, as well as a variety of industrial applications. Network monitoring helps protect the computer by initiating automatic shutdowns. Supported Eaton UPS systems include the 93PM and 93E series.

Communicates UPS Information via Dry Contacts

INDRELAY-MS offers five isolated dry-contact outputs and one isolated dry-contact input. Relays K1 through K5 are identical in function. In some UPS systems, you can assign each output contact function yourself. The card also features a cable exit opening for conduit up to 12.7 millimeters (0.5 inches).


Eaton INDRELAY-MS Industrial relay card MS




GENERAL SPECIFICATIONS

  • PRODUCT NAME : Eaton UPS relay card
  • CATALOG NUMBER : INDRELAY-MS
  • EAN : 6430028225507
  • UPC : 743172070814
  • PRODUCT LENGTH/DEPTH : 100 mm
  • PRODUCT HEIGHT : 30 mm
  • PRODUCT WIDTH : 70 mm
  • PRODUCT WEIGHT : 0.5 kg
  • COMPLIANCES : CE Marked
  • CERTIFICATIONS : CE
  • MODEL CODE : Industrial Relay Card-MS

PRODUCT SPECIFICATIONS

  • TYPE : Relay Card
  • CARD SLOT TYPE : Mini-Slot
  • OPERATING TEMPERATURE – MAX : 40 °C
  • OPERATING TEMPERATURE – MIN : 0 °C
  • TYPE OF ACCESSORY/SPARE PART : Other.

Package Includes

  • INDRELAY-MS Industrial Relay Card
  • Quick Start Guide

Additional information

Brand

Eaton

Product Name

Eaton UPS relay card

Catalog number

INDRELAY-MS

Dimension (H x W x D in mm)

30 x 70 x 100 in mm

Product weight

0.5 kg

Type

Relay card
