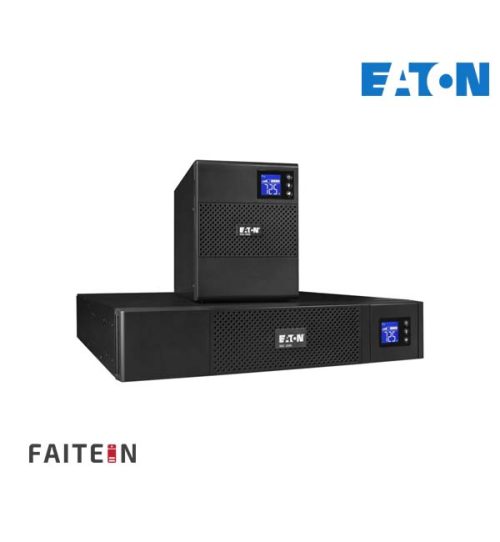

Eaton 5SC1500I UPS, 1500 VA, 1050 W, Input: C14, Outputs: (8) C13, Tower
AED 1,750.00 Excluding VAT
Eaton 5SC1500I UPS
- Description
- Additional information
- Reviews (0)
Description
Eaton 5SC1500I UPS, 1500 VA, 1050 W, Input: C14, Outputs: (8) C13, Tower
Buy Eaton 5SC1500I UPS, 1500 VA, 1050 W, Input: C14, Outputs: (8) C13, Tower. The 5SC offers USB and serial connectivity. USB port is HID compliant for automatic integration into Windows, Mac OS and Linux
The LCD interface provides clear status of the UPS key parameters such as input and output voltage, load and battery level, and estimated runtime. Essential configuration capabilities are also offered for output voltage, audible alarm and sensitivity.
General Specifications
Product Name
Catalog Number
Product Length/ Depth
Product Height
Width of the Product
Product Weight
Warranty
Compliances
Certifications
Eaton 5SC UPS
Eaton 5SC1500I
410 mm
210 mm
150 mm
15.2 kg
2 Year
CE Marked, TUV
IEC/EN 62040-1, UL 1778, IEC/EN 62040-2, CE, EAC, cTUVus
Battery
Battery Type
Replacement
Battery Quantity
Battery Management
Rating
Extended Battery capability
Lead-acid maintenance free (replaceable)
User replaceable
3
ABM or constant voltage charging method (user selectable), automatic battery test, deep discharge protection
12 V / 9 Ah
No
Electrical Output
Receptacle
Voltage
Wattage
Output Power Factor
Output Voltage Range
Waveform
Output Nominal Voltage
Feed Type
Topology
VA Rating
(8) C13
230 V
1050 W
0.7
230 V (*+6%/-10%)
Sine wave
230 V default (220/230/240 V)
1
Line Interactive
1500 VA
Electrical Input
Input Connection
Nominal Voltage
Nominal Frequency
Input Voltage Range
Input Frequency Range
C14
230 V default (220/230/240 V)
50-60 Hz
184-276 V
45-55 Hz (50 Hz system), 55-65 Hz (60 Hz system)
Communications
Includes Network Card
Communication
Ethernet Interface
User Interface
Potential Free Switch Contact
Expansion Slots
Software Compatibility
Type of Interface
No
USB port (HID compliant), Serial port (RS232)
No
LCD Display
No
No
Eaton intelligent power protection
Other
Environmental
Altitude
Noise Level
Temperature Range
Relative humidity
2000 m
<40 dB at 1 meter
0-90% non-condensing
0-9% non-condensing
Additional Specification
Construction Type
Enclosure
Package Contents
Phase (Output)
Auto Shut-down Function
Color
Efficiency
Rack Mounting Kit
Phase (Input)
Free standing model
Black
-
-
-
- USB cable
- Serial cable
- (2) IEC-IEC cables
- Quick-start guide
- Safety instruction
-
-
1
Yes
Black
97
No
1
Additional information
| Brand | Eaton |
|---|---|
| Product ID | Eaton 5SC1500I |
| Topology | Line-Interactive |
| Rating (VA/Watts) | 1500 VA / 1050 W |
| Warranty | 2 Year |
