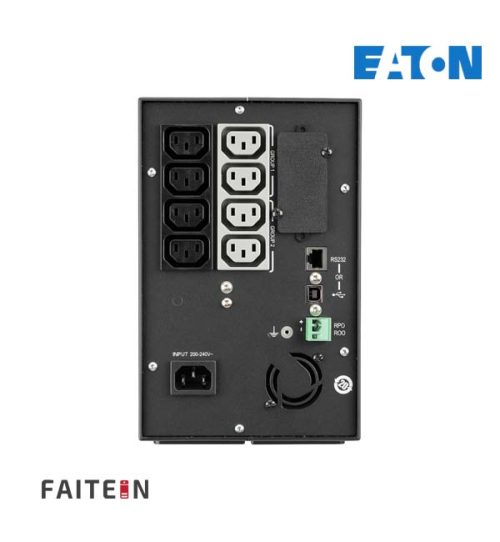

Eaton 5P1150I UPS, 1150 VA, 770 W, Input: C14, Outputs: (8) C13, Tower
AED 1,350.00 Excluding VAT
Eaton 5P1150I
- Description
- Additional information
- Reviews (0)
Description
Eaton 5P1150I UPS, 1150 VA / 770 W, Input : C14, Output : (8) C13, Tower
Buy Eaton 5P1150I, 150 VA, 770 W, Input: C14, Outputs: (8) C13, Tower. Eaton 5P is an energy efficient line-interactive UPS with advanced LCD and energy metering features.
General Specifications
Product Name
Catalog Number
UPC
Product Length/Depth
Product Height
Width of the Product
Product Weight
Compliance
Certifications
Eaton 5P UPS
Eaton 5P1150I
743172042842
345 mm
230 mm
150 mm
11.12 kg
CE Marked, TUV
UL 1778, IEC/EN 62040-1, IEC/EN 62040-2, CE, EAC, cTUVus
Battery
Battery Type
Replacement
Battery Quantity
Management
Battery Rating
Extended Battery Capability
Lead-acid maintenance-free ( Replaceable )
User replaceable
2
ABM or constant voltage charging method (user selectable), automatic battery test, deep discharge protection
12 V / 9 Ah
No
Electrical Output
Voltage
Receptacle
Wattage
Output Voltage range
Frequency
Output Nominal Voltage
Topology
230 V
(8) C13
770 W
230 V (+6%/-10%)
50/60 Hz
230 V default (200/280/220/230/240 V)
Line – Interactive
Electrical Input
Connection
Input Nominal Voltage
Nominal Frequency
Input Voltage Range
Input Frequency Range
C14
230 V Default (200/208/220/230/240V)
50/60 Hz
160-294 V (adjustable to 150-294 V)
47-70 Hz (50 Hz system), 56.5-70 Hz (60 Hz system), 40 Hz in low sensitivity mode
Communications
Communication
Ethernet Interface
Potential Free Switch Contact
Expansion Slots
Software Compatibility
Type Of Interface
-
-
-
- USB port (HID compliant)
- Serial port (RS232)
- Mini-terminal block for remote On/Off and Remote power off
- Dry contacts (2 Outputs, optocoupler, RJ)
-
-
No
Yes
One slot for optical communication card
Eaton intelligent power management, Eaton intelligent power protection
Other
Environmental
Altitude
Noise Level
Temperature Range
BTU Rating
Relative Humidity
2000 m
<40 dB at 1 meter
0-90% non-condensing
Online : 158
0-90% non-condensing
Additional Specification
Form Factor
Construction Type
Enclosure
Package Content
Phase (Output)
Auto Shut-Down Function
Color
Rack Mounting Kit
Efficiency
Phase (Input)
Tower
Free standing model
Black / silver
-
-
-
- USB Cable
- Serial cable
- (2) IEC-IEC cable
- Quick start Guide
- Safety Instruction
-
-
1
Yes
Black / Silver
No
97
1
Additional information
| Brand | Eaton |
|---|---|
| Product ID | 5P1150I |
| Topology | Line-Interactive |
| Rating (VA/Watts) | 1150/770 |
