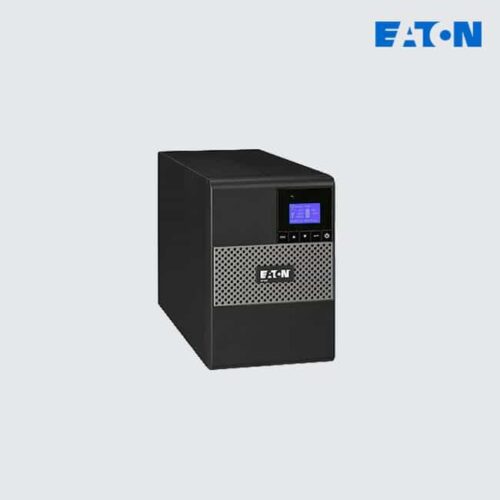

Eaton 5P 1150i VA Tower UPS 5P1150i

Eaton 5P 1150i VA Tower UPS 5P1150i

Eaton 5P 1150i VA Tower UPS 5P1150i

AED 1,275.00 Excl. VAT.

In stock

AED 1,275.00 Excl. VAT.

Eaton 5P 1150i VA Tower UPS 5P1150i
  • Brand: Eaton
  • Topology : Line Interactive with Automatic Voltage Regulation
  • Configuration: Tower
  • Part Number: 5P1150i
  • Rating (VA/Watts): 1150/770
  • Warranty: 3 years on electronics, 2 years on batteries
Availability: Only 2 left in stock (can be backordered) SKU: 5P1150 Categories: , Tag:
  • Description
  • Additional information
  • Reviews (1)

Description

Eaton 5P 1150i VA Tower UPS 5P1150i

Buy Eaton 5P 1150i VA Tower UPS 5P1150i Best price in Dubai UAE

Brand: Eaton

Part Number: 5P1150i

Line Interactive with Automatic Voltage Regulation Topology with Tower Type Configurations.

1150/770 Rating (VA/Watts)

Eaton 5P UPS

Eaton 5P is an energy efficient line-interactive UPS with advanced LCD and energy metering features.

Manageability

  • The new graphical LCD display provides clear information on
    the UPS’s status and measurements on a single screen (in
    seven languages). Enhanced configuration capabilities are also
    available with easy-to-use navigation keys.
  • The 5P can meter energy consumption providing kWh values
    through the LCD and Eaton’s power management software.
  • Load segment control enables prioritised shutdowns of nonessential equipment during outages in order to maximise battery runtime for critical devices. Load segment control can also be used to remotely reboot locked-up network equipment or to manage scheduled shutdowns and sequential start-ups.
Eaton 5P 1150i VA Tower UPS 5P1150i

Eaton 5P 1150i VA Tower UPS 5P1150i



General
Topology Line-Interactive High Frequency (Pure Sinewave, Booster + Fader)
Configuration Tower
Part Number 5P1150i
Rating (VA/Watts) 1150/770
Dimensions (H x W x D, mm) 230 x 150 x 345
Weight (kg) 11.1
Warranty 3 years on electronics, 2 years on batteries
Electrical Input
Connection
(1) IEC-320-C14

IEC C14

Input Voltage Without Using Batteries 160V-294V (adjustable to 150V-294V)
Input frequency Range Without Using Batteries 47 to 70Hz (50 Hz system), 56.5 to 70Hz (60 Hz system), 40Hz in low-sensitivity mode
Electrical Output
Voltages 230 V (+6/-10 %) (Adjustable to 200V / 208V / 220V / 230V / 240V)
Outlets
(8) IEC-320-C13

IEC C13

Remotely controlled sockets 2 groups of 2 x IEC C13 (10 A)
Output Frequency 50/60 Hz +/- 0.1 % (autosensing)
Communications
Communication Ports 1 USB port + 1 RS232 serial port and relay contacts (USB and RS232 ports cannot be used simultaneously), 1 mini-terminal block for remote ON/OFF and Remote Power Off
Communications Card Slots 1 slot for Network-MS card, ModBus-MS or Relay-MS cards
Environmental & Standards
Audible Noise < 40 dBA
Operating Temperature 0 to 35°C
Safety markings IEC/EN 62040-1, UL 1778
EMC Markings IEC/EN 62040-2, IEC/EN 62040-3 (performance)
Approvals CE, CB report, TÜV

Additional information

Brand

Eaton

Topology

Line-Interactive High Frequency (Pure Sinewave, Booster + Fader)

Configuration

Tower

Part Number

5P1150i

Rating (VA/Watts)

1150/770

Dimensions (H x W x D, mm)

330 x 180 x 133

Weight (kg)

9.22

Warranty

3 years on electronics, 2 years on batteries

1 review for Eaton 5P 1150i VA Tower UPS 5P1150i

  1. 5 out of 5

    Faitein Team

    ⭐⭐⭐⭐⭐
