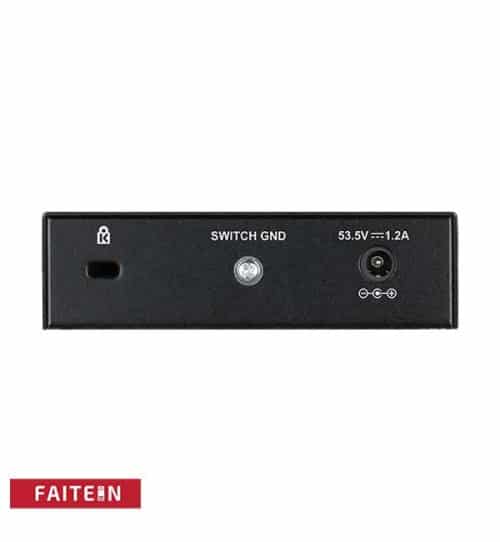

D-Link DGS-1005P 5-Port Gigabit Switch with 4 PoE Ports

Description

D-Link DGS-1005P 5-Port Gigabit Switch with 4 PoE Ports

The D-Link DGS-1005P 5-Port Desktop Gigabit PoE+ Switch enables you to connect Power over Ethernet (PoE) devices such as wireless access points (APs), network video cameras and
IP phones to the network. Built with home and small business users in mind, the DGS-1005P is compact and operates silently, making it ideal for most rooms and offices.

---

---

Features

High-Speed Networking

• Five 10/100/1000 Mbps Gigabit Ethernet ports
• Full/half-duplex for Ethernet/Fast Ethernet and
• full-duplex for Gigabit Ethernet speeds

Reliability

• IEEE 802.3x flow control
• Store-and-forward switching scheme
• RoHS-compliant

Easy Setup

• Plug-and-play installation
• Auto MDI/MDI-X crossover on all ports

Fanless and Silent

• Fanless design
• Noise-free operation

PoE Functionality

• Four PoE ports
• IEEE 802.3af/at compliant
• 60 W total power budget
• Up to 30 W power output per PoE port

Specifications

Type : Unmanaged

Number of ports : 5 to 14 ports

Later : 2 Layers

Main Type of ports : 1000 Base-T Gigabit Ethernet

Switch capacity : 10 Gbps

PoE options : 802.3af | 802.3at

Number of PoE ports : 4 Ports

PoE power budget : 60 W (30 W max. per PoE port)

Fan : 0

802.3az Energy Efficient Ethernet : support

Form Factor : Desktop

Housing : Metal

Jumbo frame : supported

Cable diagnostics : supported

MAC address : 2K.

Additional information

Brand	D-Link
Product ID	DGS-1005P
Number of ports	5 to 14 ports
Main type of Ports	1000 Base-T Gigabit Ethernet
Housing	Metal
Dimensions	100 x 98 x 28 mm (3.94 x 3.68 x 1.10 in)
