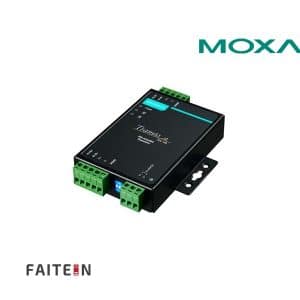

Moxa TCC-120 Industrial RS-422/485 converters/repeaters with optional 2 kV isolation
AED 385.00 Excluding VAT
Boosts serial signal to extend transmission distance
Wall mounting or DIN-rail mounting
Terminal block for easy wiring
Power input from terminal block
DIP switch setting for built-in terminator (120 ohm)
Boosts RS-422 or RS-485 signal, or converts RS-422 to RS-485
2 kV isolation protection (TCC-120I)
- Description
- Additional information
- Reviews (0)
Description
Moxa TCC-120 Industrial RS-422/485 converters/repeaters with optional 2 kV isolation
Introduction
The TCC-120 and TCC-120I are RS-422/485 converters/repeaters designed to extend RS-422/485 transmission distance. Both products have a superior industrial-grade design that includes DIN-rail mounting, terminal block wiring, and an external terminal block for power. In addition, the TCC-120I supports optical isolation for system protection. The TCC-120 and TCC-120I are ideal RS-422/485 converters/repeaters for critical industrial environments.
Serial Interface
Connector
No. of Ports
Serial Standards
Baudrate
Isolation
Pull High/Low Resistor for RS485
RS-485 Data Direction Control
Terminator for RS-485
Terminal block
2
RS-422, 485
50 bps to 921.6 kbps (support non-standard baudrates)
TCC-120I: 2 kV
1 kilo-ohm, 150 kilo-ohms
ADDC (automatic data direction control)
N/A, 120 ohms, 120 kilo-ohms
Serial Signals
RS-422
RS485-4w
RS-485-2w
Tx+, Tx-, Rx+, Rx-, GND
Tx+, Tx-, Rx+, Rx-, GND
Data+, Data-, GND
Power Parameters
Input Current
Input Voltage
No. of Power Inputs
Overload Current Protection
Power Connector
Power Consumption
65 mA @ 12 VDC
12 to 48 VDC
1
Supported
Terminal block (for DC models)
65 mA @ 12 VDC
Physical Characteristics
Housing
IP Rating
Dimension
Weight
Installation
Metal
IP 30
67 x 100.4 x 22 mm (2.64 x 3.93 x 0.87 in)
148 g (0.33 Ib.)
DIN-rail mounting (With optional kit) Wall mounting
Environmental Limits
Operating Temperature
Storage Temperature (package included)
Ambient Relative Humidity
Standard Models: -20 to 60°C (-4 to 140°F)
-40 to 85°C (-40 to 185°F)
5 to 95% (non-condensing)
Warranty
Warranty period
5 Years
Additional information
| Brand | Moxa |
|---|---|
| Product ID | TCC-120 |
| Numer of ports | 2 |
| Isolation | 2kV |
