MOXA EDS-408A-T 8-port entry-level managed Ethernet switches

Description

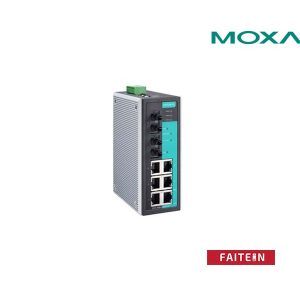

MOXA EDS-408A-T 8-port entry-level managed Ethernet switches

Introduction

The Moxa EDS-408A-T Series is designed especially for industrial applications. The switches support a variety of useful management functions, such as Turbo Ring, Turbo Chain, ring coupling, IGMP snooping, IEEE 802.1Q VLAN, port-based VLAN, QoS, RMON, bandwidth management, port mirroring, and warning by email or relay. The ready-to-use Turbo Ring can be set up easily using the web-based management interface, or with the DIP switches located on the top panel of the EDS-408A switches.

Features and Benefits

Turbo Ring and Turbo Chain (recovery time < 20 MS @ 250 switches), and
RSTP/STP for network redundancy
IGMP Snooping, QoS, IEEE 802.1Q VLAN, and port-based VLAN supported
Easy network management by web browser, CLI, Telnet/serial console,
Windows utility, and ABC-01
PROFINET or Ethernet/IP enabled by default (PN or EIP models)
Supports MXstudio for easy, visualized industrial network management

---

---

Ethernet Interface

• 10/100BaseT(X) Ports (RJ45 connector)

1. EDS-408A/408A-T, EDS-408A-EIP/PN Series: 8
2. EDS-408A-MM-SC/MM-ST/SS-SC Series: 6
3. EDS-408A-3M-SC/3M-ST/3S-SC/3S-SC-48/1M2S-SC/2M1S-SC Series: 5
4. All models support:
5. Auto negotiation speed
6. Full/Half duplex mode
7. Auto MDI/MDI-X connection

• 100BaseFX Ports (multi-mode SC connector)

1. EDS-408A-MM-SC/2M1S-SC Series: 2
2. EDS-408A-3M-SC Series: 3
3. EDS-408A-1M2S-SC Series: 1

• 100BaseFX Ports (multi-mode ST connector)

1. EDS-408A-MM-ST Series: 2
2. EDS-408A-3M-ST Series: 3

• 100BaseFX Ports (single-mode SC connector)

1. EDS-408A-SS-SC/1M2S-SC Series: 2
2. EDS-408A-2M1S-SC Series: 1
3. EDS-408A-3S-SC/3S-SC-48 Series: 3

Standards

• IEEE 802.3 for 10BaseT
• IEEE 802.3u for 100BaseT(X) and 100BaseFX
• IEEE 802.3x for flow control
• IEEE 802.1D-2004 for Spanning Tree Protocol
• IEEE 802.1p for Class of Service
• IEEE 802.1Q for VLAN Tagging
• IEEE 802.1w for Rapid Spanning Tree Protocol

Switch Properties

• IGMP Groups : 256
• MAC Table Size : 8 K
• Max. No. of VLANs : 64
• Packet Buffer Size : 1 M-bits
• Priority Queues : 4
• VLAN ID Range : VID 1 to 4094

Serial Interface

Console Port : RS-232 (T x D, R x D, GND), 10-pin RJ45 (19200, n, 8, 1)

DIP Switch Configuration

Ethernet Interface : Turbo Ring, Master, Coupler, Reserve

Input/output Interface

Alarm Contact Channels Relay output with current carrying capacity of 1 A @ 24 VDC

Power Parameters

Connection : 1 removable 6-contact terminal block(s)

Input Voltage

• All models: Redundant dual inputs
• EDS-408A/408A-T, EDS-408A-MM-SC/MM-ST/SS-SC/3M-SC/3M-ST/3S-SC/1M2S-SC/2M1S-SC/EIP/PN Series: 12/24/48 VDC
• EDS-408A-3S-SC-48/408A-3S-SC-48-T: ±24/±48 VDC

Operating Voltage

• EDS-408A/408A-T, EDS-408A-MM-SC/MM-ST/SS-SC/3M-SC/3M-ST/3S-SC/1M2S-SC/2M1S-SC/EIP/PN Series: 9.6 to 60 VDC
• EDS-408A-3S-SC-48 Series:
• ±19 to ±60 VDC2

Input Current

• EDS-408A/408A-T, EDS-408A-EIP/PN Series: 0.18 A @ 24 VDC
• EDS-408A-MM-SC/MM-ST/SS-SC Series: 0.30 A @ 24 VDC
• EDS-408A-3M-SC/3M-ST/3S-SC/3S-SC-48/1M2S-SC/2M1S-SC Series: 0.35 A @ 24
• VDC

Overload Current Protection : Supported
Reverse Polarity Protection : Supported

Physical Characteristics

• Housing : Metal
• IP Rating : IP30
• Dimensions : 53.6 x 135 x 105 mm (2.11 x 5.31 x 4.13 in)
• Weight
• EDS-408A/408A-T, EDS-408A-MM-SC/MM-ST/SS-SC, EDS-408A-EIP/PN Series: 650 g (1.44 lb.)
• EDS-408A-3M-SC/3M-ST/3S-SC/3S-SC-48/1M2S-SC/2M1S-SC Series: 890 g (1.97 lb.)
• Installation DIN-rail mounting, Wall mounting (with optional kit)

Warranty

Warranty Period : 5 years

Package Contents

• Device 1 x EDS-408A Series switch
• Cable 1 x RJ45-to-DB9 console cable
• Installation Kit 4 x cap, plastic, for RJ45 port

Documentation

• 1 x product certificates of quality inspection, Simplified Chinese
• 1 x product notice, Simplified Chinese
• 1 x quick installation guide
• 1 x warranty card.

Additional information

Brand	Moxa
Product ID	EDS-408-T
Console Port	RS-232 ( T x D, R x D, GND), 10-Pin RJ45 (19200, n, 8,1)
Ethernet Interface	Turbo Ring, master, Coupler, Reserve
Connection	1 removable 6-contact terminal block (s)
Housing	Metal
Dimension	53.6 x 135 x 105 mm (2.11 x 5.31 x 4.13 in)
Warranty	5 Years.
