Eaton 9E10KI UPS, 10 kVA, 8 kW, Input: Hardwired, Output: Hardwired, Tower
AED 7,800.00 Excluding VAT
9E10KI
- sealed lead-acid battery
- automatic battery test
- Deep discharge protection
- online/double-conversion.
- Description
- Additional information
- Reviews (0)
Description
Eaton 9E10KI UPS, 10 kVA, 8 kW, Input: Hardwired, Output: Hardwired, Tower
The Eaton 9E10KI is a high-performance uninterruptible power supply (UPS) designed for critical infrastructure, industrial applications, and IT environments
General specifications
Product Name
Catalog Number
Product Length/Depth
Product Height
Width of the Product
Product Weight
Warranty
Compliances
Certifications
Eaton 9E10KI UPS
9E10KI
61.29 cm
70.85 cm
26.24 cm
85.39 kg
1 Year
CE Marked, TUV
IEC/EN 62040-1,2, CE, EAC
Battery
Battery Type
Battery Replacement
Quantity
Battery Management
Battery Rating
Extended Battery Capability
Sealed, Lead-acid
Replaceable Batteries
20
Automatic Battery test, Deep discharge protection
12V/9Ah
Yes
Electrical Output
Voltage
Wattage
Output Power Factor
Voltage Range
Output Waveform
Nominal Voltage
Voltage Distortion Output- Max
Feed Type
Topology
VA Rating
230 V
8 kW
0.8
220/230/240 V +/- 2%
Sine Wave
230V default (220/230/240V)
3
1
Online/ Double-conversion
10 kVA
Electrical Input
Input Connection
Input Nominal Voltage
Nominal Frequency
Input Power Factor
Input Voltage Range
Frequency Range
Hardwired/fixed co0nnection
400 V/ 230 V
50/60 Hz
>.99
176-276 V (110-276 V with derating) for 1ph input
45-66Hz
Communication
Include Network Card
Communication
Ethernet Interface
User Interface
Potential Free Switch Contact
Expansion Slots
Software Compatibility
Type of Interface
No
USB port (HID compliant)
Serial port (RS232)
Mini-terminal block for remote power off
Communication slot
No

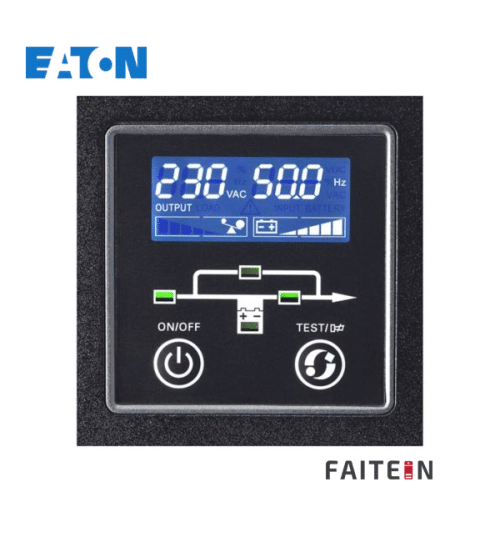

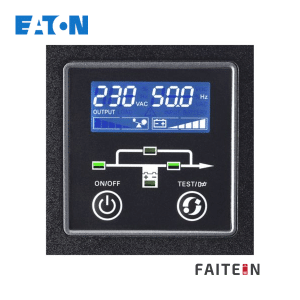

LCD Display
Yes
One slot for optional communication card
Eaton Intelligent Power Manager, Eaton Intelligent Power Protector
Other
Environmental
Altitude
Noise Level
Temperature Range
Relative Humidity
3000 m
<55 dB at 1 Meter
0° to 40°C (32° to 104°F)
0-95% non-condensing
Additional Specification
Construction Type
Package content
Phase (Output)
Internal Bypass
Auto Shutdown Function
Color
Efficiency
Rack Mounding Kit
Phase (input)
Hot Swap Power
Free standing model
UPS, USB Cable, Serial card, User manual
1
Yes
Yes
Black
92
No
1 or 3
No
Additional information
| Brand | Eaton |
|---|---|
| Topology | On-Line Double Conversion |
| Rating (VA/Watts) | 10 kVA/ 8kW |
