Description

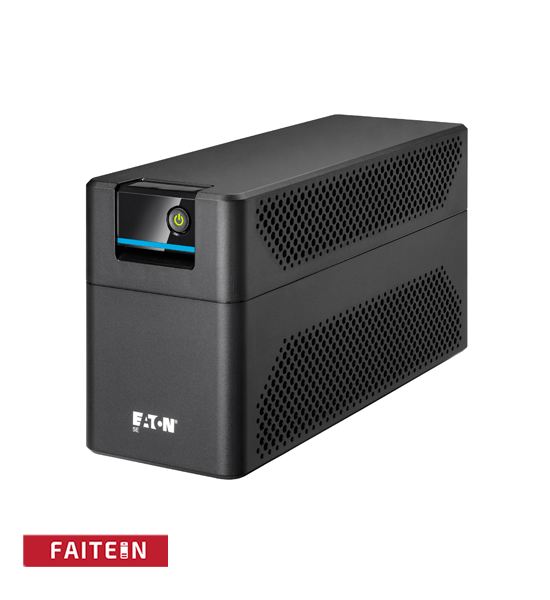

Eaton 5E700I Gen2 UPS IEC, 700 VA, 360 W, Output voltage : 230V, Input: C14, Outputs: (4) IEC C13, Tower.

Buy Eaton 5E700I Gen2 UPS IEC, 700 VA, 360 W, Input: C14, Outputs: (4) C13, Tower

General Specifications

• Product Name : Eaton 5E Gen2 UPS
• Catalog Number : 5E700I
• EAN : 3553340704130
• Product Length/Depth : 288 mm
• Product Height : 148 mm
• Product Width : 100 mm
• Product Weight :4.14 kg
• Compliances : CB LVD Directive, EMC Directive, RoHS Directive, Packaging Directive, WEEE Directive, Batteries Directive
• Certifications : IEC/EN 62040-1, IEC/EN 62040-2, CE, EAC, UKCA, Cm, Ukr, IEC/EN 62040-3

Product specifications

• Special features : Automatic Voltage Regulation (AVR)Saves space with a compact tower design
• Type : UPS
• Topology : Line-interactive
• Form factor : Tower
• Construction type : Free standing model
• Color : Black
• VA rating : 700 VA
• Wattage : 360 W
• Rack mounting kit : No
• Package contents : Eaton 5E700I 2 x IEC-IEC output cables, Quick start, Safety instructions
• Surge protection : Yes
• Internal bypass : No
• Hot swap power : No
• Auto shutdown function : No
• Primary frequency – max : 63 Hz
• Primary frequency – min : 45 Hz
• Input connection : C14
• Input nominal voltage : 230V default (220/230/240V)
• Nominal frequency : 50/60 Hz
• Input frequency range : 45-63 Hz
• Number of Outputs C13 : 4
• Voltage : 230V
• Output nominal voltage : 230V
• Feed type 1
• Voltage type AC
• Runtime graph View runtime graph
• Battery management : Automatic battery test, deep-discharge protection, cold-start capable
• Battery rating : 12 V / 7 Ah
• Battery type : Sealed, lead-acid
• User interface : LEDs
• Type of interface : None
• Relative humidity : 0-90% non-condensing
• Temperature range : 0° to 40°C (32° to 104°F)
• Operating temperature – max : 40 °C
• Operating temperature – min : 0 °C
• Output apparent power : 700 VA
• Input voltage – max : 300 V
• Input voltage – min : 140 V
• Output voltage – max : 257 V
• Output voltage – min : 195 V
• Battery quantity : 1
• Efficiency : 95
• Input voltage range : 140-300 V
• Output frequency : 50/60 Hz
• Output voltage range : 195-257 V
• Phase (input) : 1
• Phase (output) : 1
