Description

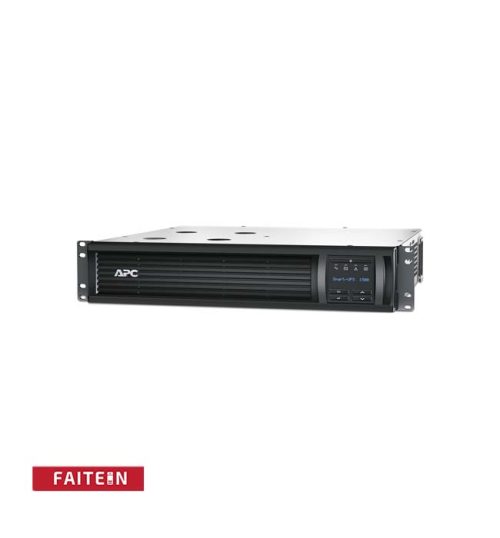

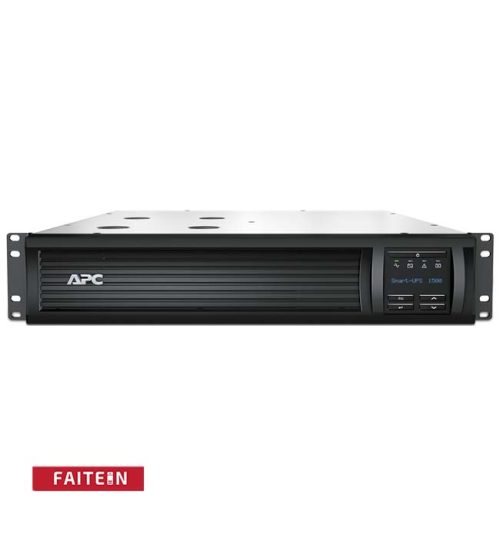

APC SMT1500RMI2UC Smart-UPS 1500VA LCD RM 2U 230V with SmartConnect Rack Mount

This APC SMT1500RMI2UC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. The 1500VA line interactive 2U rackmount UPS provides pure sine wave power to support critical electronics during power disruptions. Comes with IEC 320 C14 input, 4x IEC 320 C13 outlets, and 2x IEC jumper cables. It offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. It has a Smart Slot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via power Chute Network Shutdown.

The UPS can connect to EcoStruxure IT or third-party centralized management platforms. It provides surge protection against lightning strikes, power sags, brownouts and surges. The SMT UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty.  It is compatible with a dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications.

Specifications

• Main Input Voltage : 230 V
• Other Input Voltage : 220 V, 240 V
• Main Output Voltage : 230 V
• Other Output Voltage : 220 V, 240 V
• Rated power in W : 1000 W
• Rated power in VA : 1500 VA

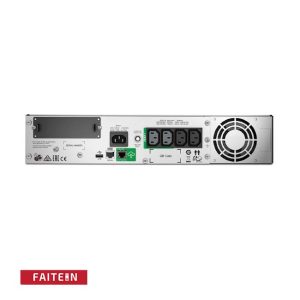

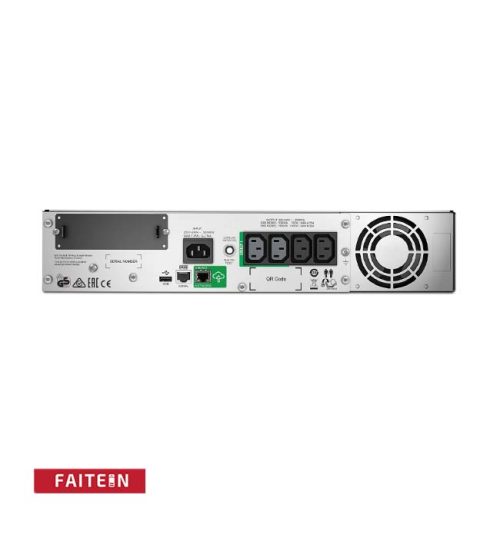

• Input Connection Type : IEC 320 C14
• output connection type
  4 IEC 320 C13
  2 IEC Jumpers C13
• Number of rack unit : 2U
• Battery type : Lead-acid battery

Batteries & Runtime

• Additional information : Configurable for 220 : 230 or 240 nominal output voltage
• Extended runtime : 0
• Number of battery filled slots : 0
• Number of battery free slots : 0
• Battery recharge time : 3 h
• Number of battery replacement quantity : 1
• Battery life : 3…5 year(s)
• Battery charger power : 144 W rated

Physical

• Color : Black
• Height : 8.6 cm
• Width : 43.2 cm
• Depth : 47.7 cmNet
• weight : 26.1 kg
• Mounting location : Front
• Mounting preference : Lower
• Mounting mode : Rack-mounted
• Two post mountable : 0
• USB compatible : Yes

Input

• Input voltage limits
  151…302 V adjustable
  160…286 V
• Network frequency : 50/60 Hz +/- 3 Hz auto-sensing

Output

• Harmonic distortion : Less than 5 %
• Maximum configurable power in VA : 1500 VA
• Maximum configurable power in W : 1000 W
• Transfer time : 6 ms typical : 10 ms maximum
• UPS type : Line interactive
• Wave type : Sine wave
• Output frequency : 50/60 Hz +/- 3 Hz sync to mains

Communications & Management

• Control panel : Multifunction LCD status and control console
• Emergency power off : Optional
• Free slots : 1
• Communication port support : SmartConnect Ethernet port: for cloud monitoring feature availability varies by terms of use
• Alarm : Alarm when on battery
• Distinctive low battery alarm : configurable delays

Surge Protection and Filtering

• Surge energy rate : 459 J
• Noise suppression : Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449.
