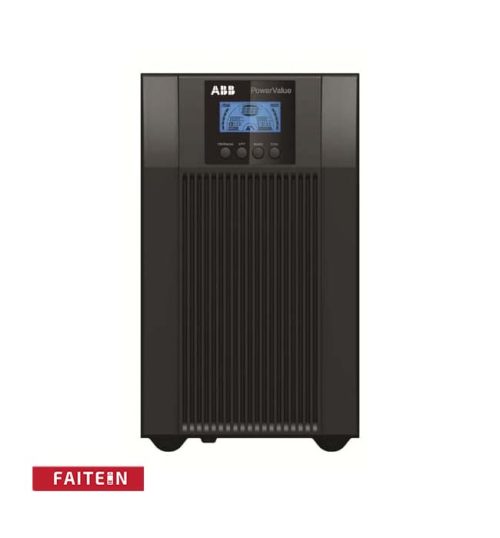

ABB 4NWP100162R0001 UPS Power-Value 11T G2 3 kVA B

Description

ABB 4NWP100162R0001 UPS Power-Value 11T G2 3kVA B

Buy ABB 4NWP100162R0001 UPS Power-Value 11T G2 3kVA B / VFI online double conversion ; 2700W; 9min ; RS232 ; USB ; mini COM slot.

General Information

Extended Product Type : UPS Power-Value 11T G2 3kVA B
Product ID : 4NWP100162R0001
EAN : 7640169261923
Catalog Description : UPS Power-Value 11T G2 3kVA B
Long Description : VFI online double conversion;2700W;9min;RS232;USB;mini COM slot



Circular Value

Conflict Minerals Reporting Template (CMRT) : 9AKK108467A5658
REACH Declaration : 4NWD004620
RoHS Information : 4NWD004828

Environmental

RoHS Status : Following EU Directive 2011/65/EU
Environmental Information : No declaration needed

Technical

• Input Voltage (Uin)
  220 V
  230 V
  240 V
• Input Voltage Type : AC
• Rated Frequency (f)
  Primary 50 Hz
  Primary 60 Hz
  Secondary 50 Hz
  Secondary 60 Hz
• Apparent Power Output : 3000 V·A
• Rated Output Power : 2700 W
• Communication Interface : USB, RS-232
• Number of Phases
  Primary – 1
  Secondary – 1
• Number of Outputs
  C13 Connection 4
  C19 Connection 1
• Connection Type : IEC C20
• Options Provided
  Auto shut down function
  Potential free switch contact
  Network-management
• Battery Chemical Composition : Lead-Acid
• Battery Type : Portable
• Battery Weight : 2.5 kg
• Number of Batteries : 4

Dimensions

• Product Net Width:190 mm
• Product Net Height:327 mm
• Product Net Depth / Length:399 mm
• Product Net Weight:22.2 kg



Container Information

• Package Level 1 Units :box 1 piece
• Package Level 1 Width:324 mm
• Package Level 1 Height:464 mm
• Package Level 1 Depth / Length:500 mm
• Package Level 1 Gross Weight:24.6 kg
• Package Level 1 EAN:7640169261923

Ordering

• Minimum Order Quantity:1 piece
• Customs Tariff Number:85044000
• E-Number (Finland):8408612
• E-Number (Sweden):5257249
• Country of Origin : China (CN)

Certificates and Declarations

• Declaration of Conformity – CCC : No certification needed
• Declaration of Conformity – CE:4NWD004828

Popular Downloads

Data Sheet, Technical Information:4NWD003883_EN
Instructions and Manuals:4NWD003883_EN
Conflict Minerals Reporting Template (CMRT):9AKK108467A5658

Classifications

• ETIM 7:EC000382 – UPS
• ETIM 8:EC000382 – UPS
• WEEE Category:5. Small Equipment (No External Dimension More Than 50 cm)
• WEEE B2C / B2B:Business To Business
• CN8 : 85044000
• eClass:V11.1 : 27040690
• Object Classification Code : G

Additional information

Brand	ABB
Part Number	4NWP100162R0001
Topology	On-Line Double Conversion
Rating (VA/Watts)	3000VA/2700W
Dimensions (H x W x D, mm)	327 mm x 190 mm x 399 mm
Weight (kg)	22.2 kg
