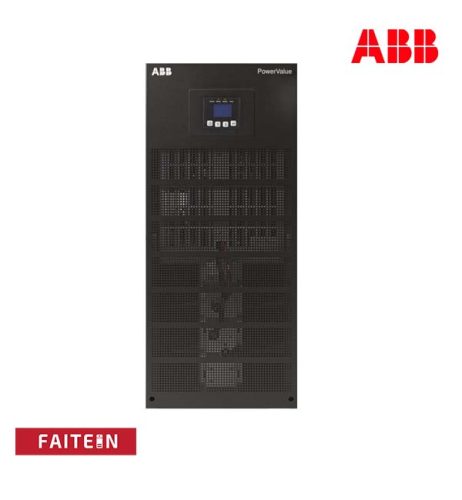

ABB 4NWP100117R0003 Powervalue 11/31 T 10KVA B2 Tower 10000VA/9000W

Description

ABB 4NWP100117R0003 Power-value 11/31 T 10KVA B2 Tower 10000VA/9000W

Buy ABB 4NWP100117R0003 VFI UPS Power-Value 11/31 T 10KVA B2 Tower 10000VA/9000W; 230V; 50/60Hz; 18 min. Auto shut down function, Potential free switch contact, Network-management.

---

---

General Information

• Extended Product Type : UPS PowerValue 11/31 T 10kVA B2
• Product ID : 4NWP100117R0003
• ABB Type Designation : UPS PowerValue 11/31 T 10kVA B2
• EAN : 7640169260421
• Catalog Description : UPS PowerValue 11/31 T 10kVA B2
• Long Description : VFI UPS Power Value 11/31 T 10000VA/9000W; 230V; 50/60Hz; 18 min

Circular Value / ABB 4NWP100117R0003

• Conflict Minerals Reporting Template (CMRT) : 9AKK108467A5658
• RoHS Information : 4NWD00341

Environmental

• Ambient Air Temperature : Storage -15…+60 °C
• RoHS Status : Following EU Directive 2011/65/EU
• Environmental Information : No declaration needed

Technical

• Input Voltage (Uin) : 220 V / 230 V / 240 V / 380 V / 400 V / 415 V
• Input Voltage Type : AC
• Rated Frequency (f) : Primary 50 Hz / Primary 60 Hz / Secondary 50 Hz / Secondary 60 Hz
• Apparent Power Output : 10000 V·A
• Rated Output Power : 9000 W
• Communication Interface : USB, RS-232
• Number of Phases : Primary – 1 / Primary – 3 / Secondary – 1
• Number of Outputs : Fixed Connections 1
• Connection Type : Fixed Connection
• Display Type : LCD
• Options Provided : Auto shut down function / Potential free switch contact / Network-management
• Battery Chemical Composition : Lead-Acid
• Battery Type : Portable
• Battery Weight : 2.5 kg
• Number of Batteries : 48

Dimensions / ABB 4NWP100117R0003

• Product Net Width : 350 mm
• Product Net Height : 890 mm
• Product Net Depth / Length : 715 mm
• Product Net Weight : 178 kg

Container Information

• Package Level 1 Units : box 1 piece
• Package Level 1 Width : 475 mm
• Package Level 1 Height : 1120 mm
• Package Level 1 Depth / Length : 815 mm
• Package Level 1 Gross Weight : 202 kg
• Package Level 1 EAN : 7640169260421

Ordering

• Minimum Order Quantity : 1 piece
• Customs Tariff Number : 85044000
• Country of Origin : China (CN)

Certificates and Declarations / ABB 4NWP100117R0003

• Declaration of Conformity – CCC : No certification needed
• Declaration of Conformity – CE : 4NWD004822

Classifications

• ETIM 7 : EC000382 – UPS
• ETIM 8 : EC000382 – UPS
• WEEE Category : 4. Large Equipment (Any External Dimension More Than 50 cm)
• WEEE B2C / B2B : Business To Business
• CN8 : 85044000
• eClass : V11.1 : 27040690
• Object Classification Code : G.

Additional information

Brand	ABB
Extended Product Type	UPS Powervalue 11/31 T 10kVA B2
Product ID	4NWP100117TR0003
ABB Type Designation	UPS Powervalue 11/31 T 10kVA B2
EAN	7640169260421
Input voltage type	AC
Dimension ( H x W x D in mm)	890 x 350 x 715 mm
Product Weight	178 kg
