Moxa TCF-142-M-SC RS-232/422/485 to Fiber Optic Converter. SC Multi-mode.

Description

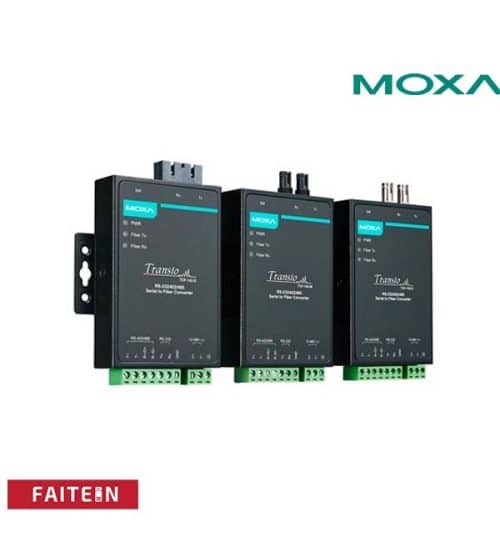

Moxa TCF-142-M-SC RS-232/422/485 to Fiber Optic Converter. SC Multi-mode.

Introduction

The TCF-142-M-SC media converters are equipped with a multiple interface circuit that can handle RS-232 or RS-422/485 serial interfaces and multi-mode or single-mode fiber. TCF-142 converters are used to extend serial transmission up to 5 km (TCF-142-M with multi-mode fiber) or up to 40 km (TCF-142-S with single-mode fiber). The TCF-142 converters can be configured to convert either RS-232 signals, or RS-422/485 signals, but not both at the same time.

Serial Interface

No. of Ports : 2
Serial Standards : RS-232/RS-422/RS-485
Baud-rate : 50 bps to 921.6 kbps (supports non-standard baud-rates)
Flow Control : ADDC (automatic data direction control) for RS-485

Pull High/Low Resistor for RS-485 : 1 kilo-ohm, 150 kilo-ohms
RS-485 Data Direction Control : ADDC (automatic data direction control)
Terminator for RS-485 : N/A, 120 ohms, 120 kilo-ohms
Connector : Multi-mode SC connector
Latency : 300 ns

Serial Signals

RS-232 : T x D, R x D, GND
RS-422 : Tx+, Tx-, Rx+, Rx-, GND
RS-485-4w : Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w : Data+, Data-, GND

Power Parameters/ TCF-142-M-SC

No. of Power Inputs : 1
Input Current : 70 to 140 mA @ 12 to 48 VDC
Input Voltage : 12 to 48 VDC
Overload Current Protection : Supported
Power Connector : Terminal block
Power Consumption : 70 to 140 mA @ 12 to 48 VDC
Reverse Polarity Protection : Supported

Physical Characteristics

IP Rating : IP30
Housing : Metal
Dimensions (with ears) : 90 x 100 x 22 mm (3.54 x 3.94 x 0.87 in)
Dimensions (without ears) : 67 x 100 x 22 mm (2.64 x 3.94 x 0.87 in)
Weight : 320 g (0.71 lb.)
Installation : Wall mounting

Environmental Limits

Operating Temperature : 0 to 60°C (32 to 140°F)
Storage Temperature (package included) : -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity : 5 to 95% (non-condensing)

Warranty

Warranty Period : 5 years.
