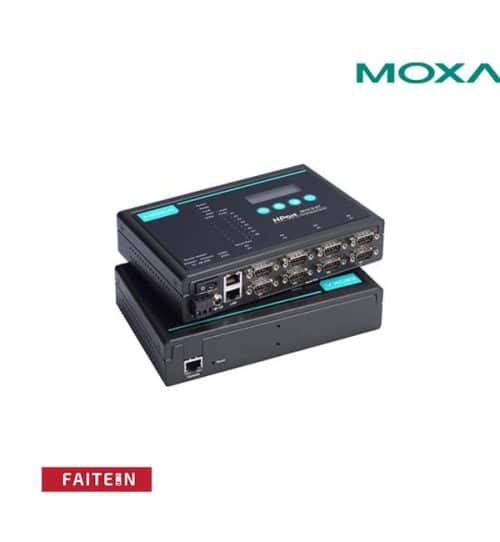

MOXA NPort 5650-8-DT 8-port RS-232/422/485 desktop device server

Description

MOXA NPort 5650-8-DT 8-port RS-232/422/485 desktop device server

Introduction

NPort 5600-8-DT device servers can conveniently and transparently connect 8 serial devices to an Ethernet network, allowing you to network your existing serial devices with only basic configuration. You can both centralize management of your serial devices and distribute management hosts over the network. Since the NPort 5650-8-DT device servers have a smaller form factor compared to our 19-inch models, they are a great choice for applications that need additional serial ports, but for which mounting rails are not available.

---

---

Features and Benefits

8 serial ports supporting RS-232/422/485
Compact desktop design
10/100M auto-sensing Ethernet
Easy IP address configuration with LCD panel
Configure by Telnet, web browser, or Windows utility
Socket modes: TCP server, TCP client, UDP, Real COM
SNMP MIB-II for network management

Ethernet Interface

10/100BaseT(X) Ports (RJ45 connector)  : 2
Magnetic Isolation Protection  : 1.5 kV (built-in)

Ethernet Software Features/ NPort 5650-8-DT

Configuration Options  : Serial Console, Telnet Console, Web Console (HTTP/HTTPS), Windows Utility

Management : ARP, BOOTP, DHCP Client, DNS, HTTP, HTTPS, ICMP, IPv4, LLDP, Rtelnet, SMTP, SNMPv1/v2c, TCP/IP, Telnet, UDP

Filter : IGMP v1/v2

Windows Real COM Drivers

• Windows 11/10/8.1/8/7/Vista/XP/ME/98/95
• Windows Server 2022/2019/2016/2012 R2/2012/2008 R2/2008/2003
• Windows Embedded CE 6.0/5.0, Windows XP Embedded

Linux Real TTY Drivers  : Kernel versions 6.x, 5.x, 4.x, 3.x, 2.6.x, and 2.4.x

Fixed TTY Drivers : macOS Versions: 11.x, 10.12 to 10.15, SCO UNIX, SCO OpenServer, SCO UnixWare 7, Sun Solaris 10, QNX 4.25, QNX 6.x, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X

Arm®-based Platform Support : Linux Kernel 5.x/4.x

Virtual Machine: VMWare ESXi (Windows 11/10), VMware Fusion (Windows on macOS 10.12 to 11.x), Parallels Desktop (Windows on macOS 10.12 to 11.x)

Android API  : Android 3.1.x and later
Time Management  : SNTP
MIB  : RFC1213, RFC1317

Serial Interface/ NPort 5650-8-DT

Connector : DB9 male
No. of Ports : 8
Serial Standards : RS-232/422/485

Baudrate : Supports standard baudrates (unit=bps): 50, 75, 110, 134, 150, 300, 600, 1200, 1800, 2400, 4800, 7200, 9600, 19200, 38400, 57600, 115200, 230.4k, 460.8k, 921.6k

Data Bits : 5, 6, 7, 8
Stop Bits : 1, 1.5, 2
Parity : None, Even, Odd, Space, Mark
Flow Control : RTS/CTS, DTR/DSR, XON/XOFF

Pull High/Low Resistor for RS-485 : 1 kilo-ohm, 150 kilo-ohms
Terminator for RS-485 : 120 ohms
RS-485 Data Direction Control : Automatic Data Direction Control (ADDC)
Isolation : -I models: 2 kV
Surge : 0.5 kV
Console Port : RS-232 (T x D, R x D, GND), 3-pin (19200, n, 8, 1)

Serial Signals

RS-232 : T x D, R x D, RTS, CTS, DTR, DSR, DCD, GND
RS-422: Tx+, Tx-, Rx+, Rx-, GND
RS-485-4w : Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w : Data+, Data-, GND

Power Parameters/ NPort 5650-8-DT

Input Current : 615 mA @ 12 VDC
No. of Power Inputs : 2
Input Voltage : 12 to 48 VDC
Reverse Polarity Protection : Supported
Source of Input Power : TB, Power input jack

Reliability

Automatic Reboot Trigger : Built-in WDT
Alert Tools : Built-in buzzer and RTC (real-time clock)

Physical Characteristics

• Housing : Metal
• Installation : Desktop, DIN-rail mounting (with optional kit), Wall mounting (with optional kit)
• Dimensions (with ears) : 229 x 46 x 125 mm (9.01 x 1.81 x 4.92 in)
• Dimensions (without ears) : 197 x 44 x 125 mm (7.76 x 1.73 x 4.92 in)
• Dimensions (with DIN-rail kit on bottom panel) : 197 x 53 x 125 mm (7.76 x 2.09 x 4.92 in)
• Weight : 1,590 g (3.51 lb.)
• Interactive Interface : LCD panel display, Push buttons for configuration

Environmental Limits

Operating Temperature : 0 to 55°C (32 to 131°F)
Storage Temperature (package included) :  -40 to 75°C (-40 to 167°F)
Ambient Relative Humidity : 5 to 95% (non-condensing)

Warranty

Warranty Period : 5 years.

---



Additional information

Brand	Moxa
Product ID	NPort 5650-8-DT
No. of Ports	8
Connector	DB9 Male
Serial Standards	RS-232/422/485
Pull High/Low Resistor for RS-485	1 kilo-ohm, 150 kilo-ohms
Housing	Metal
Dimensions (with ears)	229 x 46 x 125 mm (9.01 x 1.81 x 4.92 in)
Warranty Period	5 Years.
