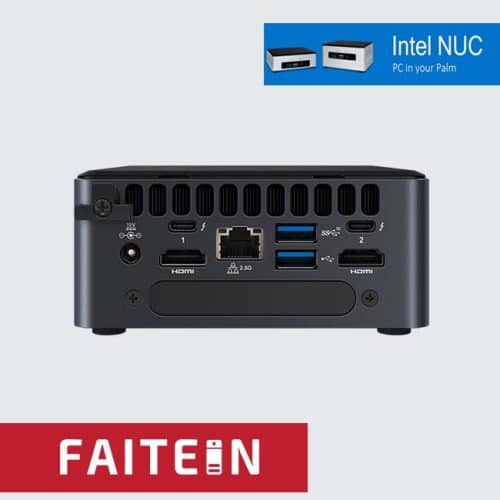

Intel NUC 11 Pro Kit NUC11TNHi7 Mini PC, Intel Core i7-1165G7 Processor, 3 Years Warranty
AED 2,250.00 Excluding VAT
Intel NUC 11 Pro Kit NUC11TNHi7 Mini PC
11th Gen Intel® Core™ i7-1165G7 Processor (4-Core | 12M Cache | up to 4.70 GHz)
Support up to 64GB DDR4 Memory
Intel iris XE Graphics
Intel Wi-Fi 6 AX201 + Bluetooth*5
- Description
- Additional information
- Reviews (0)
Description
Intel NUC 11 Pro Kit NUC11TNHi7 Mini PC, Intel Core i7-1165G7 Processor, 3 Years Warranty
Buy Intel NUC 11 Pro Kit NUC11TNHi7 Mini PC, Intel Core i7-1165G7 Processor, 3 Years Warranty BNUC11TNHI70002
- Intel® Core™ i7-1165G7 Processor (12M Cache, up to 4.70 GHz, 4 Cores, 8 Threads)
- 64GB DDR4 Max Memory
- 2x M.2 and 2.5″ Drive
- Dual HDMI 2.0b w/HDMI CEC, Dual DP 1.4a via Type C
- Intel® Ethernet Controller i225-LM, Intel® Wi-Fi 6 AX201, Bluetooth 5.0, VESA Mount Bracket & 19V AC adapter.
| Intel® NUC 11 Pro Kit NUC11TNHi7 | |
| Essentials | |
| Product Collection | Intel® NUC Kit with 11th Generation Intel® Core™ Processors |
| Code Name | Products formerly Tiger Canyon |
| Status | Launched |
| Launch Date | Q1’21 |
| Expected Discontinuance | 1H’24 |
| Supported Operating Systems | Windows 11 Home* | Windows 11 Pro* | Windows 10 Home | 64-bit* | Windows 10 IoT Enterprise* | Windows 10 Pro | 64-bit* | Red Hat Linux* | Ubuntu 20.04 LTS* |
| Board Number | NUC11TNBi7 |
| Board Form Factor | UCFF (4″ x 4″) |
| Socket | Soldered-down BGA |
| Internal Drive Form Factor | M.2 and 2.5″ Drive |
| # of Internal Drives Supported | 3 |
| Lithography | 10 nm SuperFin |
| TDP | 28 W |
| DC Input Voltage Supported | 12-20 VDC |
| Processor Included | Intel® Core™ i7-1165G7 Processor (12M Cache | up to 4.70 GHz) |
| Total Cores | 4 |
| Total Threads | 8 |
| Max Turbo Frequency | 4.70 GHz |
| Supplemental Information | |
| Embedded Options Available | No |
| Memory & Storage | |
| Max Memory Size (dependent on memory type) | 64 GB |
| Memory Types | DDR4-3200 1.2V SO-DIMMs |
| Max # of Memory Channels | 2 |
| Max # of DIMMs | 2 |
| ECC Memory Supported ‡ | No |
| Processor Graphics | |
| Integrated Graphics ‡ | Yes |
| Graphics Output | Dual HDMI 2.0b w/HDMI CEC | Dual DP 1.4a via Type C |
| # of Displays Supported ‡ | 4 |
| Expansion Options | |
| PCI Express Revision | Gen 4 (m.2 22×80 slot); Gen 3 (otherwise) |
| PCI Express Configurations ‡ | PCIe x4 Gen 4: M.2 22×80 (key M) PCIe x1 Gen 3: M.2 22×42 (key B) PCIe x1: M.2 22×30 (key E) |
| M.2 Card Slot (wireless) | 22×30 (E) |
| M.2 Card Slot (storage) | 22×80 NVMe (M); 22×42 SATA (B) |
| I/O Specifications | |
| # of USB Ports | 4 |
| USB Configuration | Front: 2x USB 3.2 Rear: 2x USB 4 (type C) | 1x USB 3.2 | 1x USB 2.0 Internal: 1x USB 3.2 on m.2 22×42 (pins) | 2x USB 2.0 (headers) |
| Total # of SATA Ports | 1 |
| Serial Port via Internal Header | Yes |
| Integrated LAN | Intel® Ethernet Controller i225-LM |
| Integrated Wireless‡ | Intel® Wi-Fi 6 AX201 |
| Integrated Bluetooth | Yes |
| Additional Headers | Front_panel (PWR | RST | 5V | 5Vsby | 3.3Vsby); Internal 2×2 power connector |
| # of Thunderbolt™ Ports | 1x Thunderbolt™ 4 | 1x Thunderbolt™ 3 |
| Package Specifications | |
| Chassis Dimensions | 117 x 112 x 54 [mm] (LxWxH) |
| Advanced Technologies | |
| Intel® Optane™ Memory Supported ‡ | No |
| Intel® Virtualization Technology for Directed I/O (VT-d) ‡ | Yes |
| Intel® ME Firmware Version | 15 |
| Intel® Virtualization Technology (VT-x) ‡ | Yes |
| Intel® Platform Trust Technology (Intel® PTT) | Yes |
| Security & Reliability | |
| Intel® AES New Instructions | Yes |
Additional information
| Brand | Intel |
|---|---|
| Processor | Intel® Core™ i7-1165G7 Processor (12M Cache, up to 4.70 GHz, 4 Cores, 8 Threads) |
| Memory Option | No Memory, 8GB DDR4 Memory Pre-Installed + AED 75.00, 16GB DDR4 Memory Pre-Installed + AED 110.00, 32GB DDR4 Memory Pre-Installed + AED 215.00 |
| M.2 Storage-1 Option | NO M.2 SSD, 250GB NVMe PCIe M.2 SSD Pre-Installed + AED 95.00, 500GB NVMe PCIe M.2 SSD Pre-Installed + AED 150.00, 1TB NVMe PCIe M.2 SSD Pre-Installed + AED 295.00, 2TB NVMe PCIe M.2 SSD Pre-Installed + AED 545.00 |
| 2.5 inch SATA Storage-2 Option | NO HDD, 500GB 2.5 inch SATA HDD + AED 75.00, 1TB 2.5 inch SATA HDD + AED 125.00 |
| Graphics | Intel Iris Xe Graphics |
| Networking/communications | Intel® Wi-Fi 6 AX201, Bluetooth 5.0, LAN |
| Operating System | No OS, Windows 10 Pro + AED 480.00 |
| Warranty | 3 years |
