Eaton 5PX3000iRT3UG2 – 5PX Gen2 UPS, 3000 VA, 3000 W, Input: C20, Output: (8) C13, (2) C19, Rack/tower, 3U

HOT
Eaton 5PX3000iRT3UG2 - 5PX Gen2 UPS, 3000 VA, 3000 W, Input: C20, Output: (8) C13, (2) C19, Rack/tower, 3U
Eaton 5PX3000iRT3UG2 - 5PX Gen2 UPS, 3000 VA, 3000 W, Input: C20, Output: (8) C13, (2) C19, Rack/tower, 3U
Eaton 5PX3000iRT3UG2 - 5PX Gen2 UPS, 3000 VA, 3000 W, Input: C20, Output: (8) C13, (2) C19, Rack/tower, 3U - Image 2
Eaton 5PX3000iRT3UG2 - 5PX Gen2 UPS, 3000 VA, 3000 W, Input: C20, Output: (8) C13, (2) C19, Rack/tower, 3U - Image 3

Eaton 5PX3000iRT3UG2 – 5PX Gen2 UPS, 3000 VA, 3000 W, Input: C20, Output: (8) C13, (2) C19, Rack/tower, 3U

Eaton 9E10KI UPS, 10 kVA, 8 kW, Input: Hardwired, Output: Hardwired, Tower Eaton 9E10KI UPS, 10 kVA, 8 kW, Input: Hardwired, Output: Hardwired, Tower
Eaton 5PX3000iRT3UG2 - 5PX Gen2 UPS, 3000 VA, 3000 W, Input: C20, Output: (8) C13, (2) C19, Rack/tower, 3U

Eaton 5PX3000iRT3UG2 – 5PX Gen2 UPS, 3000 VA, 3000 W, Input: C20, Output: (8) C13, (2) C19, Rack/tower, 3U

AED 4,025.00 Excluding VAT

In stock
0 out of 5
( There are no reviews yet. )

AED 4,025.00 Excluding VAT

Eaton 5PX Gen2 UPS, 3000 VA, 3000 W, Input: C20, Output: (8) C13, (2) C19, Rack/tower, 3U 5PX3000IRT3UG2

  • Topology : Double-conversion
  • Configuration : Tower/Rack 3U
  • Part Number : 5PX3000IRT3UG2
  • Rating (VA/Watts) : 3000/3000
Availability: In stock SKU: UPS-EATON-RT-5PX3000iRT3UG Categories: , Tag:
Add to Wishlist
Compare

Description

Eaton 5PX3000iRT3UG2 – 5PX Gen2 UPS, 3000 VA, 3000 W, Input: C20, Output: (8) C13, (2) C19, Rack/tower, 3U

Buy  Eaton 5PX3000iRT3UG2 – 5PX Gen2 UPS, 3000 VA, 3000 W, Input: C20, Output: (8) C13, (2) C19, Rack/tower, 3UBest Price in Dubai UAE

The Eaton 5PX Rack/Tower UPS provides line-interactive backup power and scalable runtimes for servers, storage systems, VoIP gear and network equipment. With a next-generation intuitive LCD display, energy consumption metering down to the outlet group level, and up to 99% efficiency, the 5PX is the perfect UPS to protect modern IT equipment

Graphical LCD

The new graphical LCD display provides clear information on the UPS’s status and measurements on a single screen (in seven languages). Enhanced configuration capabilities are also available with easy-to-use navigation keys.

Energy efficient

With an optimised electrical design and up to 99% efficiency, the 5PX is an ENERGY STAR® qualified UPS which allows you to reduce cooling and utility costs. For the first time in the industry the 5PX can meter energy consumption right down to the managed outlet groups.

Extended runtime

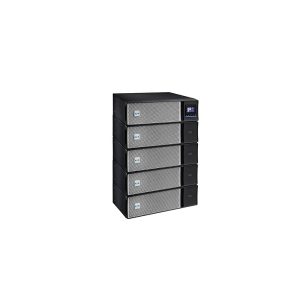

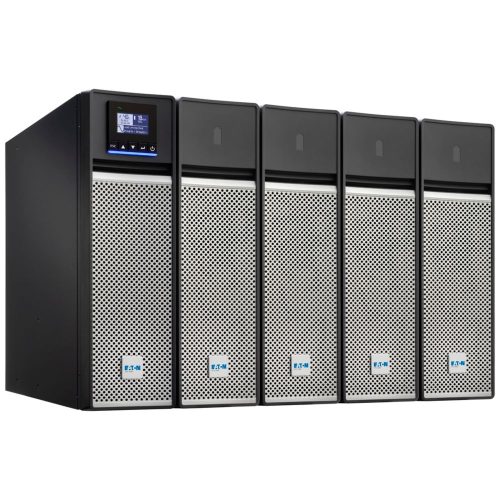

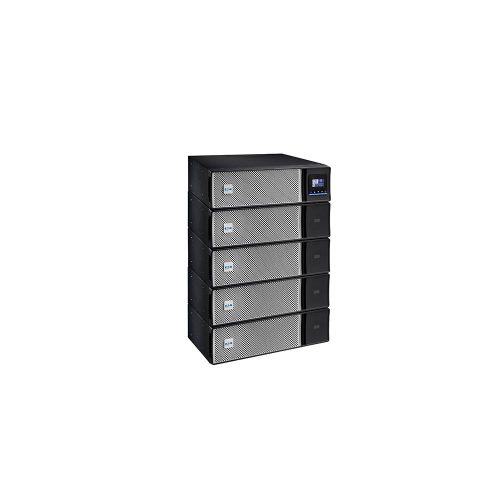

Eaton5PX UPS allows you to increase the runtime by adding up to four external hot-swappable battery modules, able to run systems for hours if necessary. The additional battery modules are automatically recognised by the UPS.
Eaton 5PX3000iRT3UG2 - 5PX Gen2 UPS, 3000 VA, 3000 W, Input: C20, Output: (8) C13, (2) C19, Rack/tower, 3U
Eaton 5PX3000iRT3UG2 – 5PX Gen2 UPS, 3000 VA, 3000 W, Input: C20, Output: (8) C13, (2) C19, Rack/tower, 3U





GENERAL SPECIFICATIONS

PRODUCT NAME
Eaton 5PX3000iRT3UG2 – 5PX Gen2 UPS, 3000 VA, 3000 W, Input: C20, Output: (8) C13, (2) C19, Rack/tower, 3U
CATALOG NUMBER
5PX3000IRT3UG2

General specifications

Product Name
Eaton 5PX Gen2 UPS
Catalog Number
5PX3000IRT3UG2
UPC
743172104892
Product Length/Depth
483 mm
Product Height
129 mm
Product Width
438 mm
Product Weight
31.1 kg
Warranty
3 year on electronics, 2 year on battery
Compliances
IEC/EN 62040-1
IEC/EN 62040-2
IEC/EN 62040-3
RoHS Compliant
REACH
UL 1778
CSA 22.2
Certifications
CE
cTUVus
EAC
Cm
UKCA
Ukr
KCC
ENERGY STAR certified
Model Code
Eaton 5PX 3000i RT3U G2

Electrical input

Input connection
C20
Input nominal voltage
230V default (200/208/220/230/240V)
Nominal frequency
50-60 Hz
Input cord length
1.8m
Input voltage range
160-294 V (adjustable to 150 V-294 V)
Input frequency range
47-70 Hz (50 Hz system), 56.5-70 Hz (60 Hz system), 40 Hz in low sensitivity mode

Battery

Battery type
Lead-acid maintenance-free (replaceable)
Runtime graph
Battery replacement
User replaceable
Battery quantity
6
Battery management
ABM & Temperature compensated charging method (user selectable), Automatic battery test, deep discharge protection, automatic recognition of external battery units
Battery rating
12 V / 9 Ah
Extended battery capability
Yes

Communications

Includes network card
No
Communication
  • USB port (HID compliant)
  • Serial port (RS232)
  • Mini-terminal block for remote On/Off and Remote Power Off
  • Mini-terminal block for output relay
  • Dry contacts (3 outputs, 1 input, optocoupler, DB9)
User interface
Multilingual graphical LCD display
Potential free switch contact
Yes
Expansion slots
One slot for optional communication card
Software compatibility
Eaton Intelligent Power Manager, Eaton Intelligent Power Protector
Type of interface
Other

Environmental

Altitude
3000 m
Noise level
<40 dB at 1 meter
Temperature range
0° to 40°C (32° to 104°F), batteries recommended max. 25°C (77°F)
Relative humidity
0-90% non-condensing

Electrical output

Receptacle
(8) C13, (2) C19
Voltage
230V
Wattage
3000 W
Output power factor
1
Output voltage range
230 V (+6%/-10%)
Output waveform
Sine wave
Output nominal voltage
230V default (200/208/220/230/240V)
Voltage distortion output (linear load) – max
0
Feed type
1
Topology
Line-interactive
VA rating
3000 VA

Additional specifications

Construction type
482.6 mm (19 inch) device
Package contents
  • Input cable
  • Rack-mounting kit
  • (2) Supports for tower mounting
  • Cable locking system
  • USB cable
  • Serial cable
  • (2) IEC-IEC cables
  • Quickstart guide
  • Safety instructions
Phase (output)
1
Auto shutdown function
Yes
Color
Black/silver
Efficiency at max. load
98
Rack mounting kit
Yes
Phase (input)
1

Additional information

Brand

Eaton
Topology

Line-Interactive
Form Factor

Tower/Rack 3U
Part Number

5PX3000IRT3UG2
Rating (VA/Watts)

3000VA/3000W
Dimensions (H x W x D, mm)

130.7 x 441 x 497
Weight (kg)

31.3
Input Connection

(1) IEC-320-C20
Output Outlets

(8) C13, (2) C19
