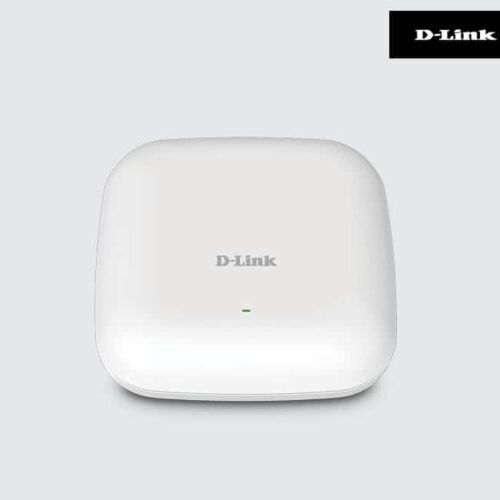

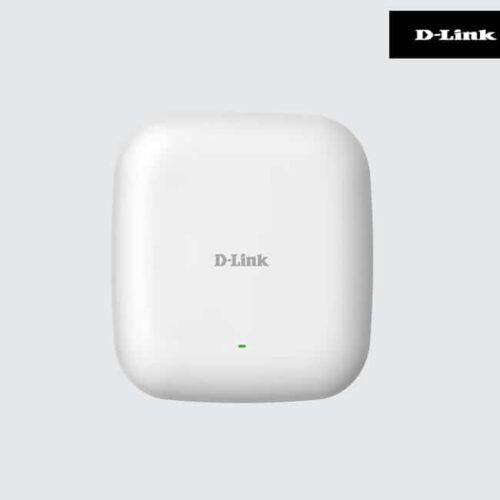

Dlink DAP‑2610 Wireless AC1300 DualBand PoE Access Point

Description

Dlink DAP‑2610 Wireless AC1300 DualBand PoE Access Point

Dlink DAP‑2610 Wireless AC1300 Wave 2 DualBand PoE Access Point

The DAP-2610 Wireless AC1300 Wave 2 Dual-Band PoE Access Point is designed to support small to medium business or enterprise environments by providing network administrators with secure and manageable dual-band wireless LAN options, and utilising the cutting-edge speed of 802.11ac Wave 2.

Business Class Wi-Fi.

With simultaneous dual-band, PoE support, extensive manageability, versatile operation modes, and robust security enhancements, the DAP-2610 Wireless AC1300 Wave 2 Dual-Band PoE Access Point provides a reliable solution for deploying a business-class wireless network.

Enterprise Wireless Performance

The DAP-2610 delivers reliable, high-speed wireless performance using the latest 802.11ac Wave 2 standard with wireless signal rates of up to 1.3 Gbps (400 Mbps over the 2.4 GHz band and 900 Mbps over the 5 GHz band)

Technology that makes a difference

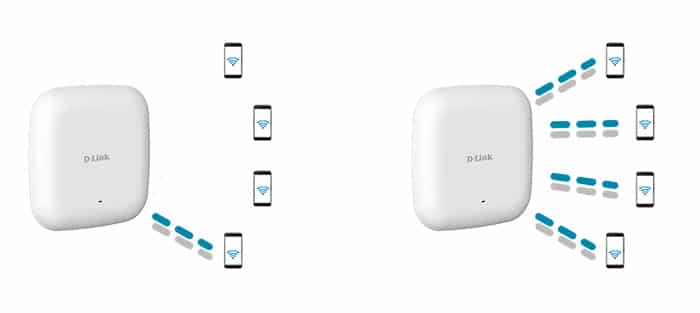

MU-MIMO allows multiple devices to get high-bandwidth Wi-Fi signal at the same time, distributing data more efficiently. Beamforming improves coverage and speed by directing Wi-Fi signal directly to the client device. Band Steering automatically connects each device on the network to the best, clearest band available for the best connection

Built-in RADIUS and Dynamic VLAN

WPA/WPA2 Enterprise can connect to your existing RADIUS server or use the built-in RADIUS server allowing users to create their accounts within the device itself.

Network Access Protection (NAP) this allows dynamic VLAN assignment for each wireless client upon authentication. Up to eight VLANs per band and bandwidth controls are supported, for further user segmentation.

Guest access control

Provide Guest access with a Captive Portal. Combine it with RADIUS authentication and Dynamic VLAN for Guest bandwidth and access control.

Scalable Wireless Network Management

• D-Link’s free Central WiFiManager: configure and manage multiple access points centrally from a remote location. This allows network administrators to conduct configuration and regular maintenance checks on large deployments remotely, eliminating the need for sending out personnel.

• AP Array: simply configure one access point and have the settings automatically sync to the rest of the group. With D-Link’s AP Array technology you can even use different AP models in the array.

• Secure and user friendly web GUI.
• Command line (SSH and Telnet).

Flexible deployment

With 802.3af Power over Ethernet (PoE) support, you can easily install in areas where power outlets are not available. WDS support allow multiple DAP-2610s to bridge with one another, while also providing network access to individual clients. Additionally, advanced features such as load balancing and redundancy ensure fail-safe wireless connectivity.

Multiple Operation Modes

Configure your DAP-2610 access point to meet your specific wireless network requirements with any one of its multiple operation modes: Access Point, Wireless Distribution System (WDS), a WDS with Access Point, and Wireless Client.

Efficient Power Saving

The DAP-2610 has a built-in schedule function which dynamically powers down the wireless network off when not in use. This feature reduces power consumption, saving energy and money.



Technical Specifications

Features

High-performance Connectivity

• IEEE 802.11ac Wave 2 wireless
• Up to 1300 Mbps speed
• MU-MIMO with beamforming
• Band steering
• Gigabit LAN port

Extensive Management

• Web, SSL, SSH and Telnet management
• SNMP v1, v2c, v3
• D-Link Central WiFiManager support for additional configuration options
• AP Array utility support

Trusted Security Features

• WPA/WPA2 Personal/Enterprise
• 64/128-bit WEP
• MAC filter and WLAN partitioning
• Local/POP3/RADIUS/PassCode/LDAP authentication for captive portal

Convenient Installation

• Small form factor design for easy placement
• Supports 802.3af Power over Ethernet for remote installation

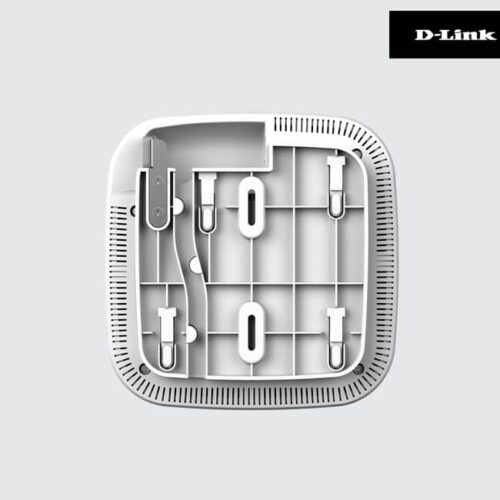

• Wall and ceiling mountable²

Technical Specifications

General

Device Interfaces

• IEEE 802.11a/b/g/n/ac Wave 2 wireless
• 1 Gigabit LAN (supports PoE)

Standards

• IEEE 802.11a/b/g/n/ac¹
• IEEE 802.3u/ab
• IEEE 802.3az Energy Efficient Ethernet (EEE)
• IEEE 802.3af Power over Ethernet

Antennas

• 2 internal dual-band 3 dBi omni antennas

Operating Frequency³

• 2.4 GHz band: 2.4 to 2.4835 GHz
• 5 GHz band: 5.15 to 5.35 GHz, 5.47 to 5.85 GHz

Maximum Output Power

• 20 dBm for 2.4 GHz
• 20 dBm for 5 GHz

Data Signal Rate

• 2.4 GHz
  • Up to 400 Mbps
• 5 GHz
  • Up to 867 Mbps

Functionality

Security

• WPA-Personal
• WPA-Enterprise
• WPA2-Personal
• WPA2-Enterprise
• WEP 64/128-bit encryption
• SSID broadcast disable
• MAC address access control
• Network Access Protection (NAP)
• Internal RADIUS server

Network Management

• Telnet
• Secure Telnet (SSH)
• Web (HTTP)
• Secure Socket Layer (SSL)
• Traffic control
• SNMP v1/v2c/v3
• D-Link Central Wi-Fi Manager
• AP Array

LEDs

• Power/status

Physical

Dimensions

• 170 x 170 x 28 mm (6.69 x 6.69 x 1.1 inches)

Weight

• 314 g (0.69 lbs) without mounting base
• 370.6 g (0.82 lbs) with mounting base

Power Supply

• External power adapter: 12 V/1 A (not included)
• IEEE 802.3af PoE

Maximum Power Consumption

• 12 W

Temperature

• Operating: 0 to 40°C (32 to 104°F)
• Storage: -20 to 65°C (-4 to 149°F)

Humidity

• Operating: 10% to 90% non-condensing
• Storage: 5% to 95% non-condensing

Meantime Between Failure (MTBF)

• >30,000 hours

Certifications

• FCC
• IC
• CE⁴
• UL
• Wi-Fi Certified

Additional information

High-performance Connectivity	IEEE 802.11ac Wave 2 wireless1 Up to 1300 Mbps1 speed MU-MIMO with beamforming Band steering Gigabit LAN port
Antennas	2 internal dual-band 3 dBi omni antennas
Operating Frequency	2.4 GHz band: 2.4 to 2.4835 GHz 5 GHz band: 5.15 to 5.35 GHz, 5.47 to 5.85 GHz
Security	WPA-Personal WPA-Enterprise WPA2-Personal WPA2-Enterprise WEP 64/128-bit encryption SSID broadcast disable MAC address access control Network Access Protection (NAP) Internal RADIUS server
Extensive Management	Web, SSL, SSH and Telnet management SNMP v1, v2c, v3 D-Link Central WiFiManager support for additional configuration optionst AP Array utility suppor
