ATEN VC925 DisplayPort to VGA Adapter

Description

ATEN VC925 DisplayPort to VGA Adapter

Plug-n-Play :- No installation software or drivers required. The Aten VC925 is the perfect solution for connecting DisplayPort inputs to VGA output displays.

Superior Video Resolution :- Supports VGA, SVGA, XGA, SXGA, UXGA, and resolutions up to 1920 x 1200 and 1080p, making it highly compatible across devices.

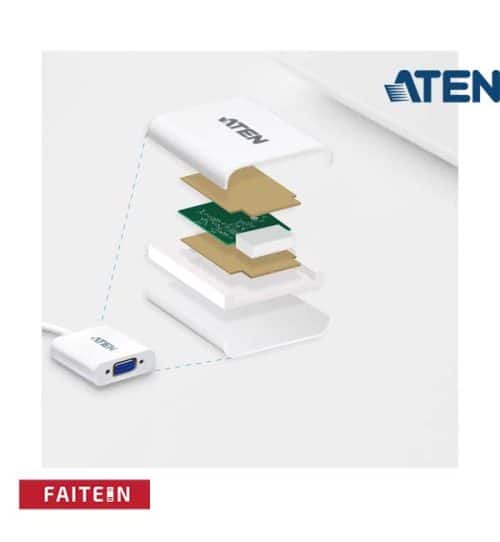

Superior Signal Quality :- The internal copper foil shielding protection ensures signal integrity and minimizes external interference, giving you extra reliable and superior quality signals.

The VC925 is a DisplayPort to VGA adapter, allowing you to connect your device’s DisplayPort output to the VGA input of a TV or other display.

The VC925 provide a cost-effective yet high performance signal conversion solution. This adapter is therefore perfect for computers and notebooks, supporting display resolutions of up to WUXGA (1920×1200@60Hz).

---

---

Video Input

Interfaces : 1 x DisplayPort Male (White)

Video Output

Interface : 1 x HDB-15 Female (Blue)

Video

Max. Pixel Clock : 165 MHz

Max. Resolution : Input up to 4096 x 2160 @60Hz (4:4:4) / Output up to 1920 x 1200

Compliance DP 1.2

Environmental

Operating Temperature 0 – 50 ºC

Storage Temperature -20 – 60 ºC

Humidity 0 – 80% RH, Non-Condensing

Physical Properties

Housing : plastic

Weight : 0.04 kg (0.1 Ib.)

Dimensions ( L x W x H) : 18.00 x 4.50 x 1.50 cm (7.09 x 1.77 x 0.59 in).

Additional information

Brand	Aten
Product ID	VC925
Video Input/ Output	1 x DisplayPort Male (White) / 1 x HDB-15 Female (Blue)
Housing	Plastic
Dimensions (L x W x H)	18 x 4.50 x 1.50 cm ( 7.09 x 1.77 x 0.59 in )
Weight	0.04 kg ( 0.1 Ib.)
