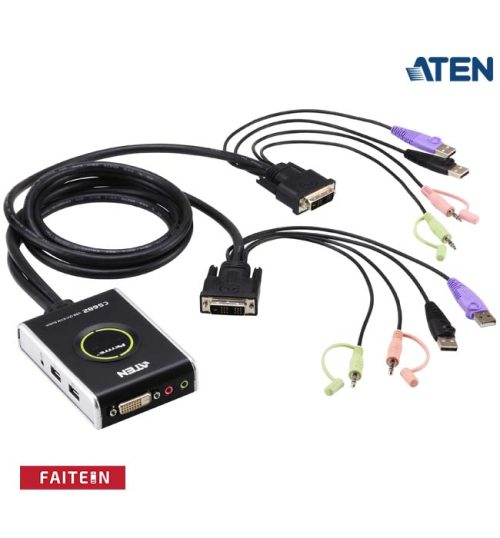

ATEN CS682 2-Port USB DVI/Audio Cable KVM Switch with Remote Port Selector

Description

ATEN CS682 2-Port USB DVI/Audio Cable KVM Switch with Remote Port Selector

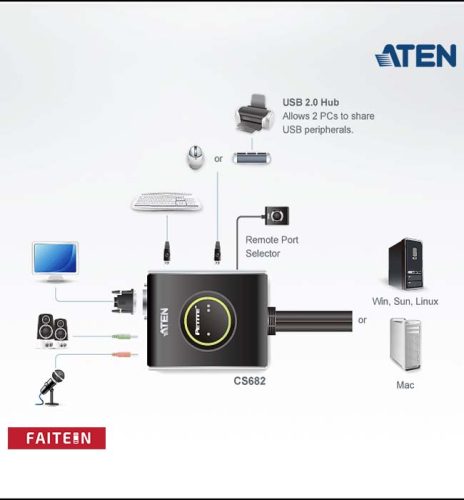

The Aten CS682 Takes a giant step forward from prior models in the Petite series, by offering DVI functionality, USB 2.0 peripheral sharing, and a rich bass experience for 2.1 surround systems. Another new feature of the CS682 is the implementation of a remote port selector. This means that you can now control port switching from the desktop while the switch itself can be placed in a convenient, out of the way, location.

Features

• One DVI video console controls two USB computers
• Fully DVI-Digital specification compliant
• USB 2.0 mouse port can be used for USB hub and USB peripheral sharing
• Computer selection via remote port selector, hotkeys, and USB mouse
• Audio-enabled – full bass response provides a rich experience for 2.1 channel surround sound systems
• Multiplatform support – Windows, Linux, Mac and Sun
• Compact design, built-in all-in-on cables (2 x 1.2 m)
• Independent switching of the KVM and Audio focus – one computer can have the KVM focus while the other has the audio focus
• Superior video quality – up to 1920 x 1200
• Compatible with widescreen LCD monitors
• Video DynaSync™ – Exclusive ATEN technology eliminates boot-up display problems and optimizes resolution when switching between ports
• Power on detection – if either of the computers is powered off, the CS682 will automatically switch to the other computer
• Supports multimedia keyboards
• Supports wireless keyboards and mice
• Console mouse port emulation/bypass feature supports most mouse drivers and multifunction mice
• Mac/Sun keyboard support and emulation**
• HDCP Compliant
• Bus-Powered
• Firmware upgradable

---

---

SPECIFICATIONS

Computer Connections : 2

Port Selection : Hotkey, Mouse, Remote Port Selector

Console Ports :

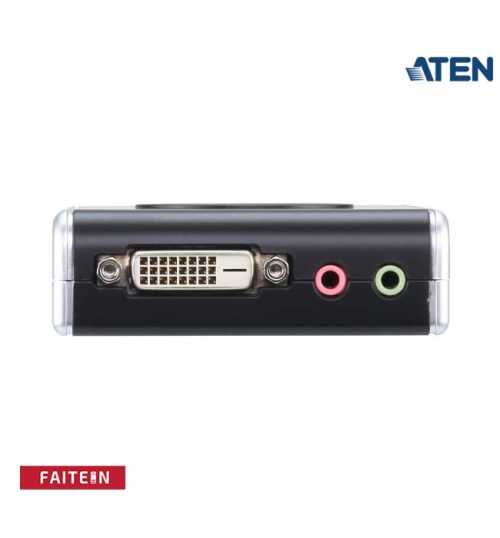

• 1 x DVI-D Female (White)

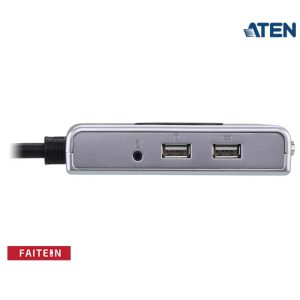

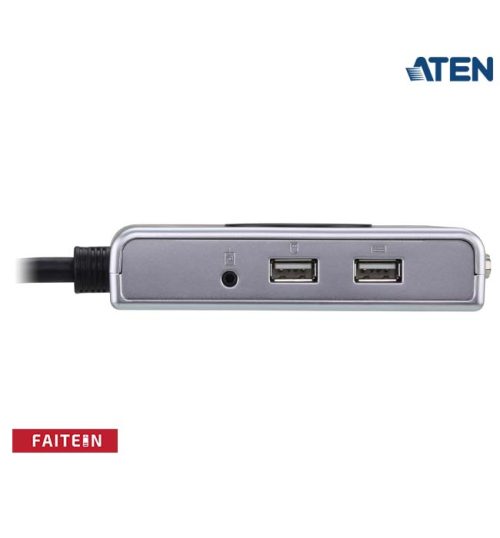

• 2 x USB Type A Female
• 1 x 3.5mm Audio Jack Female (Green)
• 1 x 3.5mm Audio Jack Female (Pink)

KVM Ports :

• 2 x DVI-D Male (Black)
• 2 x USB Type A Male (Purple)
• 2 x USB Type A Male (Black)
• 2 x 3.5mm Audio Jack Male (Green)
• 2 x 3.5mm Audio Jack Male (Pink)

Remote Port Selector : 1 x 2.5 mm Audio Jack Female

LEDs

KVM : 2 (Green)

Remote Port Selector : 2 (Green)

Cable Length

KVM : 2 x 1.2 m

Remote Port Selector : 1.8 m

Emulation

Keyboard / Mouse : USB

Video : 1920 x 1200 @ 60Hz

Scan Interval : 3, 5, 10, 20 secs. (default 5 secs.)

Power Consumption : DC5V:3.23W:28BTU/h

Note :

• The measurement in Watts indicates the typical power consumption of the device with no external loading.
• The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.

Environmental

Operating Temperature : 0 – 50°C

Storage Temperature  : -20 – 60°C

Humidity : 0 – 80% RH, Non-condensing

Physical Properties ( ATEN CS682 )

Housing : Plastic

Weight :0.49 kg ( 1.08 lb )

Dimensions (L x W x H) : 11.15 x 7.80 x 2.40 cm (4.39 x 3.07 x 0.94 in.)

Additional information

Brand	ATEN
Product ID	CS682
Console Ports	1 x DVI-D Female (White) 2 x USB Type A Female 1 x 3.5mm Audio Jack Female (Green) 1 x 3.5mm Audio Jack Female (Pink)
KVM Ports	2 x DVI-D Male (Black) 2 x USB Type A Male (Purple) 2 x USB Type A Male (Black) 2 x 3.5mm Audio Jack Male (Green) 2 x 3.5mm Audio Jack Male (Pink)
Video	1920 x 1200 @60Hz
Dimensions (L x W x H)	11.15 x 7.80 x 2.40 cm (4.39 x 3.07 x 0.94 in.)
